Removal [09/2015 - ]: Procedure

  1. REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY

    Refer to REMOVAL [10/2014 - ]

  2. REMOVE SUSPENSION TOWER DAMPER

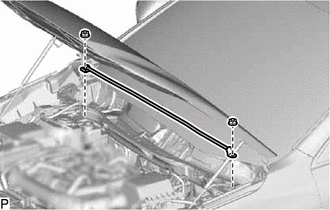

    1. Remove the 2 nuts and the suspension tower damper from the vehicle.
      GTY537925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
