Installation [10/2014 - ]: Procedure

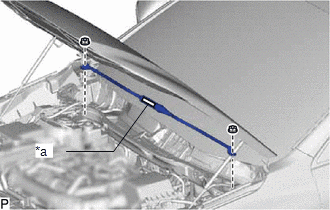

1. Install the suspension tower damper with the 2 nuts.

   Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

   NOTE:

   Make sure to install the suspension tower damper with the label facing upright.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Label

Refer to INSTALLATION [10/2014 - ]
