Installation [10/2014 - ]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

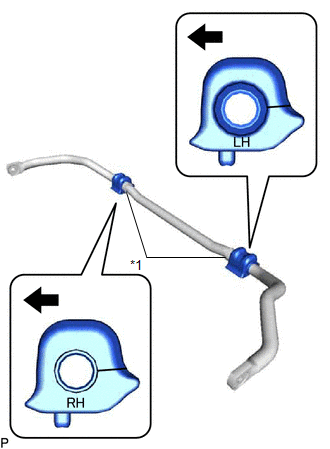

*1	Stopper
	Front of the Vehicle

1. Install the front stabilizer bar bushing to the front stabilizer bar as shown in the illustration.
   NOTE:

   • Install the front stabilizer bar bushing so that the cutouts face the rear of the vehicle.
   • Install the front stabilizer bar bushing LH so that the stopper of the front stabilizer bar is inside of the vehicle.
   • Make sure that the LH and RH bushing are installed in the proper locations.

HINT:

Use the same procedure described for the LH side.

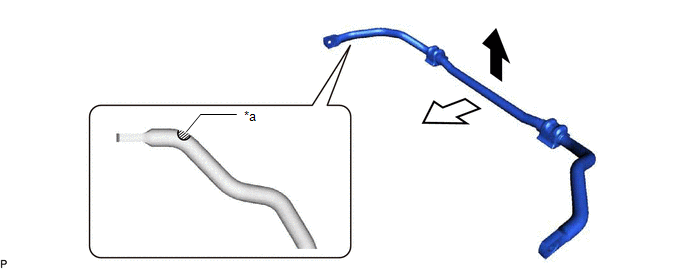

1. Install the front stabilizer bar to the front suspension crossmember so that the identification mark is positioned on the right side of the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Identification Mark	-	-
   	Top of the Vehicle		Front of the Vehicle

See step  1

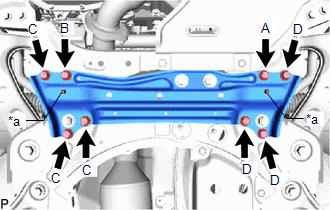

1. Install the front suspension member brace with the 8 bolts.

   Torque: 92 N*m (938 kgf*cm, 68 ft.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protrusion

   NOTE:

   • After installing the front suspension member brace, make sure that the protrusions of the front stabilizer bar bushings are visible.
   • Tighten the bolts in the following order: Temporarily install bolt A, tighten bolt B, tighten the 3 bolts C, tighten the 3 bolts D and then tighten bolt A.

1. Install the front stabilizer link assembly LH with the nut.

   Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

   HINT:

   If the ball joint turns together with the nut, use a 6 mm hexagon wrench to hold the stud bolt.

HINT:

Use the same procedure described for the LH side.
