Removal [10/2014 - ]: Procedure

  1. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  2. SECURE STEERING WHEEL

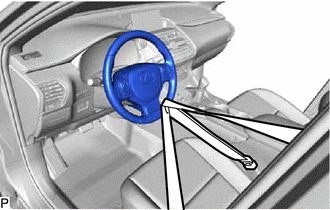

    1. Secure the steering wheel assembly with the seat belt in order to prevent rotation.

      HINT:

      This operation is useful to prevent damage to the spiral cable.

      GTY497056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE COLUMN HOLE COVER SILENCER SHEET

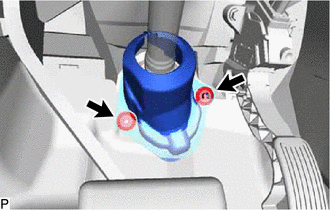

    1. Fold back the floor carpet, and then remove the 2 clips and column hole cover silencer sheet.
      GTY497039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Place matchmarks on the sliding yoke of the steering intermediate shaft.
      GTY519489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Remove the bolt and disconnect the No. 2 steering intermediate shaft assembly.
  5. DISCONNECT NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY

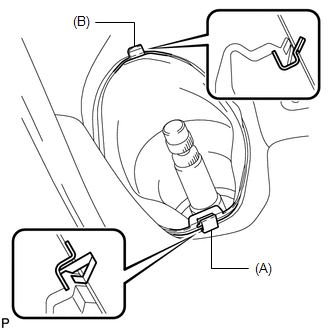

    1. Remove the clip (A), disengage the clip (B) from the body and separate the No. 1 steering column hole cover sub-assembly.
      NOTE:

      Do not damage the clips (A) and (B).

      GTY508964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT WHEELS

    Refer to PROCEDURE - Step 1 [10/2014 - ]

  7. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY (for Sport Package)

    Refer to PROCEDURE - Step 6 [10/2014 - 09/2016] , or refer to PROCEDURE - Step 6 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 6 [05/2019 - ]

  8. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY (except Sport Package)

    Refer to PROCEDURE - Step 7 [10/2014 - 09/2016] , or refer to PROCEDURE - Step 7 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 7 [05/2019 - ]

  9. REMOVE FRONT FLOOR COVER CENTER LH

    Refer to PROCEDURE - Step 10 [10/2014 - 09/2016] , or refer to PROCEDURE - Step 10 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 10 [05/2019 - ]

  10. REMOVE REAR ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 9 [10/2014 - 09/2016] , or refer to PROCEDURE - Step 9 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 9 [05/2019 - ]

  11. REMOVE REAR ENGINE UNDER COVER RH

    Refer to PROCEDURE - Step 8 [10/2014 - 09/2016] , or refer to PROCEDURE - Step 8 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 8 [05/2019 - ]

  12. DISCONNECT TIE ROD END SUB-ASSEMBLY LH
    1. Remove the cotter pin and castle nut.

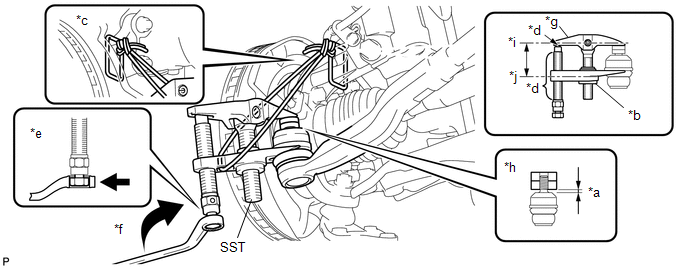

    2. Using SST, disconnect the tie rod end sub-assembly LH from the steering knuckle.
      • SST: 09960-20010
        1. 09961-02060
      GTY503493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 1 mm (0.0397 in.) *b Nut
      *c String *d Molybdenum Grease Application Area
      *e Place the wrench here *f Turn
      *g SST Number *h Spacer B
      *i Body *j Claw
      WARNING:

      Apply molybdenum grease to the bolt threads and the tip of SST.

      NOTE:
      • Make sure to tie the string of SST to the vehicle to prevent SST from dropping.
      • As the ball joint dust cover may be damaged, adjust SST with the center nut so that the body and claw are parallel.
      • Do not damage the ball joint boot of the tie rod end.
      • Do not damage the steering knuckle.
      • Do not damage the front disc brake dust cover.
  13. DISCONNECT TIE ROD END SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  14. DISCONNECT FRONT STABILIZER LINK ASSEMBLY LH

    Refer to PROCEDURE - Step 13 [10/2014 - ]

  15. DISCONNECT FRONT STABILIZER LINK ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  16. REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT LH

    Refer to PROCEDURE - Step 12 [10/2014 - ]

  17. REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT RH

    HINT:

    Use the same procedure described for the LH side.

  18. REMOVE FRONT SUSPENSION MEMBER REAR BRACE LH

    Refer to PROCEDURE - Step 10 [10/2014 - ]

  19. REMOVE FRONT SUSPENSION MEMBER REAR BRACE RH

    HINT:

    Use the same procedure described for the LH side.

  20. REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21 [10/2014 - ]

  21. REMOVE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY
    1. Remove the clamp.
    2. Remove the No. 1 steering column hole cover sub-assembly from the steering gear assembly.
      GTY517397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE STEERING INTERMEDIATE SHAFT
    1. Place matchmarks on the steering intermediate shaft and steering gear assembly.
      GTY381787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Remove the bolt and steering intermediate shaft from the steering gear assembly.
  23. REMOVE STEERING GEAR ASSEMBLY
    1. Remove the 2 bolts, 2 nuts and steering gear assembly from the front suspension crossmember sub-assembly.
      GTY369886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut fixed in place.
