Removal [10/2014 - 09/2017]: Procedure

  1. REMOVE PROTECTOR

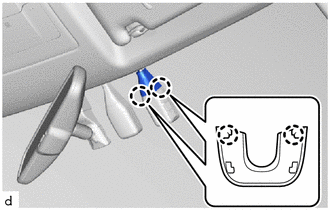

    GTY521438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 2 claws and remove the protector.
  2. REMOVE AIR CONDITIONING THERMISTOR ASSEMBLY (HUMIDITY SENSOR)

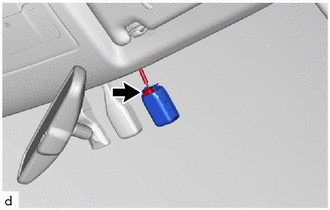

    GTY515423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector.
    2. Release the stopper by pulling it down.

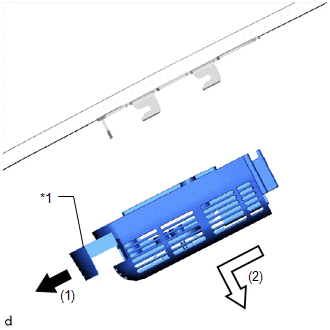

      GTY508303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Stopper
    3. Remove the air conditioning thermistor assembly (humidity sensor) as shown in the illustration.
