Removal [10/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE ATF TEMPERATURE SENSOR ASSEMBLY

    Refer to REMOVAL [10/2014 - ]

  2. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

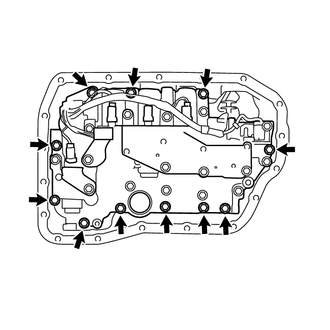

    1. Remove the 11 bolts and transmission valve body assembly from the automatic transaxle assembly.
      GTY514148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • When removing the transmission valve body assembly, be careful not to allow the transmission revolution sensor and the transaxle case sub-assembly to interfere with each other.
      • Make sure the manual valve does not fall when removing the transmission valve body assembly, as the manual valve is not fixed to the transmission valve body assembly.
  3. REMOVE TRANSAXLE CASE GASKET

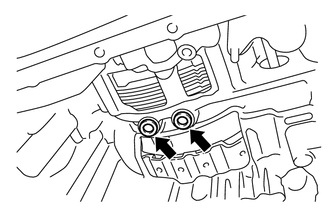

    1. Remove the 2 transaxle case gaskets from the automatic transaxle assembly.
      GTY514130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE MANUAL VALVE
    1. Remove the manual valve from the transmission valve body assembly.
      GTY323057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
