Installation [10/2014 - ]: Procedure

1. Coat the manual valve with ATF and install it to the transmission valve body assembly.

1. Coat 2 new transaxle case gaskets with ATF and install them to the transaxle case sub-assembly.

1. Coat the O-ring of the transmission wire with ATF.
2. Insert the pin of the manual valve lever shaft sub-assembly into the groove on the end of the manual valve and install the transmission valve body assembly to the transaxle case sub-assembly with the 11 bolts.

   Torque: 10.8 N.m (110 kgf/cm, 8 ft.lbf)

   Bolt Length

   Bolt	Length (mm (in.))
   A	25 mm (0.984)
   B	30 mm (1.181)
   C	35 mm (1.378)
   D	55 mm (2.165)

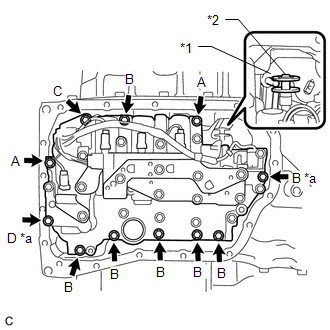

   NOTE:

   • When installing the transmission valve body assembly, be careful not to allow the transmission revolution sensor and transaxle case sub-assembly to interfere with each other.
   • First, temporarily tighten the bolts marked *a in the illustration because they are positioning bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Manual Valve Lever Shaft Sub-assembly
   *2	Manual Valve
   *a	Positioning Bolt

Refer to INSTALLATION [10/2014 - ]
