Components [10/2014 - ]

WARNING: This page is about a different variant/trim than selected.

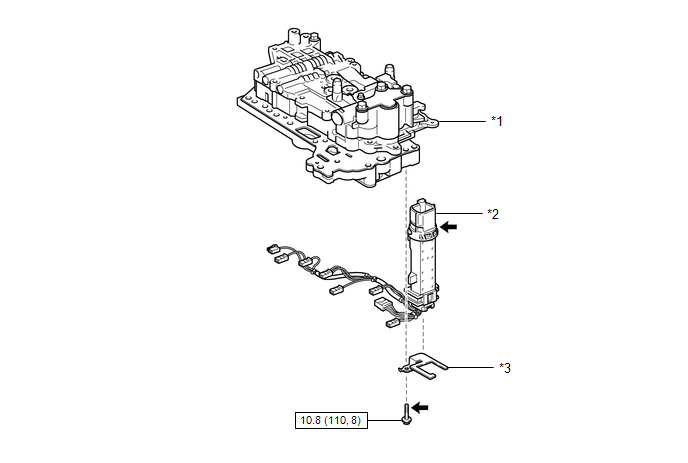

Fig 1: Transmission Wire Replacement Components With Torque Specifications
GTY502305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSMISSION VALVE BODY ASSEMBLY *2 TRANSMISSION WIRE
*3 LOCK PLATE - -
N.m (kgf/cm, ft.lbf): Specified torque Toyota Genuine ATF WS
