Removal [10/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 1 SPEAKER WITH BOX ASSEMBLY (w/ ASC System)

    Refer to REMOVAL [10/2014 - ]

  2. REMOVE CONSOLE BOX ASSEMBLY (w/o ASC System)

    Refer to REMOVAL [10/2014 - 09/2017] , or refer to REMOVAL [09/2017 - ]

  3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7 [10/2014 - 05/2019] , or refer to PROCEDURE - Step 7 [05/2019 - ]

  4. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
  5. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9 [10/2014 - 05/2019] , or refer to PROCEDURE - Step 9 [05/2019 - ]

  6. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

    See step  3

  7. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Remove the nut and disconnect the transmission control cable assembly from the control shaft lever.
      GTY511651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip from the transmission control cable assembly.

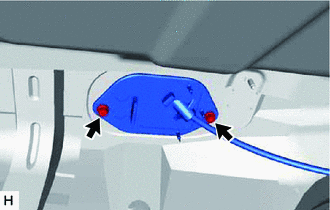

    3. Remove the 2 bolts and transmission control cable assembly.
      GTY511648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
