Adjustment [10/2014 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE NO. 1 SPEAKER WITH BOX ASSEMBLY (w/ ASC System)
Refer to REMOVAL [10/2014 - ]
- REMOVE CONSOLE BOX ASSEMBLY (w/o ASC System)
Refer to REMOVAL [10/2014 - 09/2017] , or refer to REMOVAL [09/2017 - ]
- ADJUST SHIFT LEVER POSITION
- Move the shift lever to N.

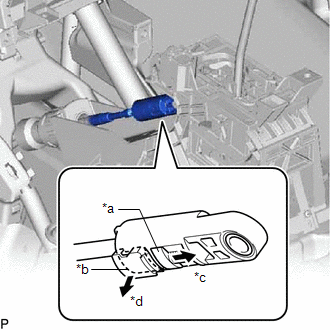

- Slide the slider of the transmission control cable assembly in the direction indicated by the arrow and pull the lock piece outward.
*a Slider *b Lock Piece *c Slide *d Pull - Gently lift the cable rod with your fingers to pull the cable tight.

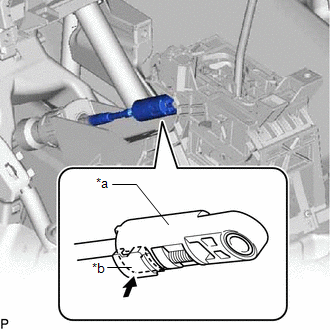

- Push the lock piece into the adjuster case.
*a Adjuster Case *b Lock Piece NOTE:- Check that the shift lever position sensor and the shift lever are in neutral.
- Securely push in the lock piece until the slider lock is engaged.
- After adjusting the shift lever position, check the operation and function of the shift lever. If there is a problem, adjust the position again.
- INSTALL CONSOLE BOX ASSEMBLY (w/o ASC System)
Refer to INSTALLATION [10/2014 - 09/2017] , or refer to INSTALLATION [09/2017 - ]
- INSTALL NO. 1 SPEAKER WITH BOX ASSEMBLY (w/ ASC System)
Refer to INSTALLATION [10/2014 - ]
