Installation [10/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

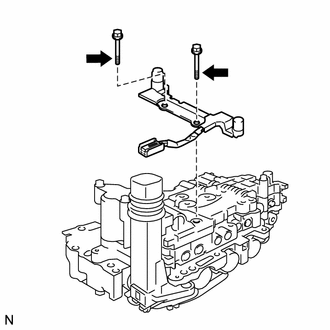

  1. INSTALL TRANSMISSION REVOLUTION SENSOR
    1. Coat the 2 bolts with ATF.
      GTY518505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Toyota Genuine ATF WS
    2. Install the transmission revolution sensor to the transmission valve body assembly with the 2 bolts.

      Torque: 10.8 N.m (110 kgf/cm, 8 ft.lbf)

    3. Connect the transmission revolution sensor connector.
  2. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

    Refer to INSTALLATION [10/2014 - ]
