Section 6 (Automatic Transmission (U661E) - Service Information (1 Of 2))
>>
Speed Sensor
>>
Components [10/2014 - ]
Components [10/2014 - ]
WARNING:
This page is about a different variant/trim than selected.

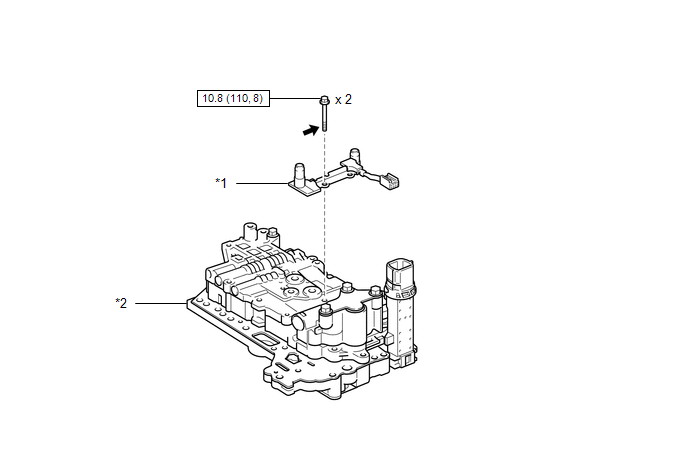

Fig 1: Speed Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
TRANSMISSION REVOLUTION SENSOR
*2
TRANSMISSION VALVE BODY ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque
Toyota Genuine ATF WS
