Removal [10/2014 - 09/2017]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE STEERING WHEEL ASSEMBLY

    Refer to REMOVAL [10/2014 - 09/2017]

  2. REMOVE TRANSMISSION SHIFT SWITCH ASSEMBLY

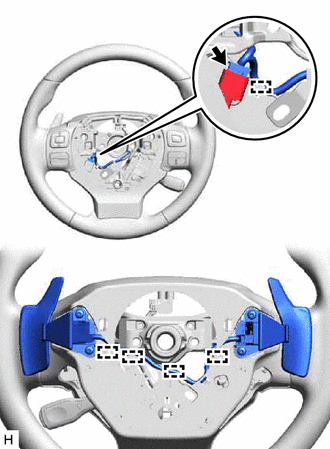

    1. Disconnect the connector and 5 guides.
      GTY507903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

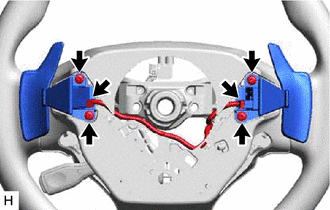

    2. Remove the 4 screws and 2 transmission shift switch assemblies with No. 1 switch wire from the steering wheel assembly.
      GTY519787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the 2 transmission shift switch assembly connectors to remove the No. 1 switch wire from the 2 transmission shift switch assemblies.
