Removal [10/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 1 SPEAKER WITH BOX ASSEMBLY (w/ ASC System)

    Refer to REMOVAL [10/2014 - ]

  2. REMOVE CONSOLE BOX ASSEMBLY (w/o ASC System)

    Refer to REMOVAL [10/2014 - 09/2017] , or refer to REMOVAL [09/2017 - ]

  3. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Move the shift lever to N.

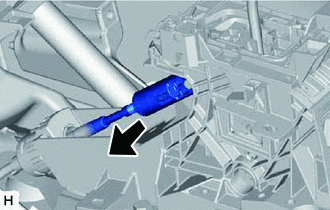

    2. Disconnect the end of the transmission control cable assembly from the shift lever assembly.
      GTY511626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

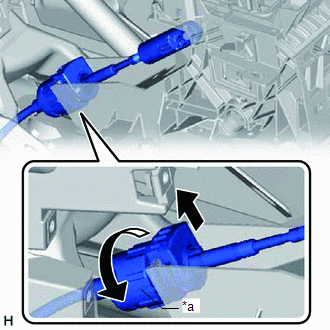

    3. Rotate the nut of the transmission control cable assembly clockwise approximately 180° and, while holding the nut in that position, disconnect the transmission control cable assembly from the shift lever assembly.
      GTY502996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Nut
      NOTE:

      Do not over-rotate the nut as it will come off the internal spring and the transmission control cable assembly will not be reusable.

  4. REMOVE SHIFT LEVER ASSEMBLY

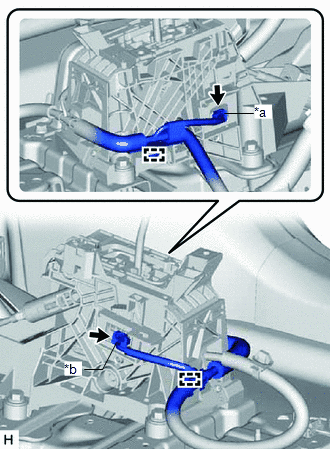

    1. Disconnect the transmission control switch connector.
      GTY503666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Shift Lock Control ECU Connector
      *b Transmission Control Switch Connector
    2. Disconnect the shift lock control ECU connector.
    3. Disconnect the 2 clamps from the shift lever assembly.
    4. Remove the nut from the shift lever assembly.
      GTY502732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

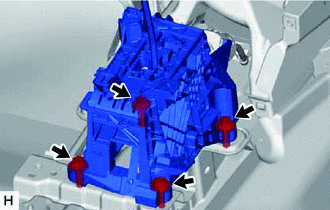

    5. Remove the 4 bolts and shift lever assembly from the body.
      GTY511628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
