Reassembly [10/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL SHIFT POSITION INDICATOR
    1. Install the shift position indicator to the rear upper console panel sub-assembly with the 2 screws.
      GTY511657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SHIFTING HOLE COVER SUB-ASSEMBLY
    1. Attach the 7 claws and install the shifting hole cover sub-assembly to the rear upper console panel sub-assembly.
      GTY511625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

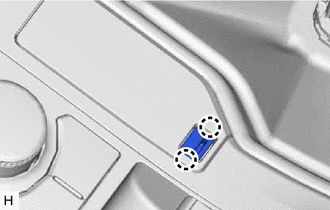

  3. INSTALL SHIFT LEVER CAP
    1. Attach the 2 claws and install the shift lever cap to the shift position indicator.
      GTY514158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
