Installation [10/2014 - ]: Procedure

1. Temporarily install the shift lever assembly with the 4 bolts.
2. Tighten the bolts in the order shown in the illustration.

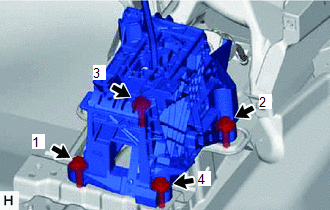

   Fig 1: Shift Lever Assembly Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

3. Install the nut to the shift lever assembly.
4. Connect the 2 clamps.
5. Connect the shift lock control ECU connector.
6. Connect the transmission control switch connector.

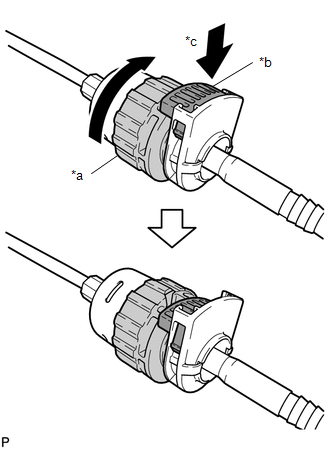

1. Turn the nut of the transmission control cable 180° clockwise. While holding the nut in place, push in the stopper to lock the nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Nut
   *b	Stopper
   *c	Push in

   NOTE:

   Do not over-rotate the nut as it will come off the internal spring and the transmission control cable will not be reusable.

   HINT:

   If the stopper cannot be pushed in, slightly turn the nut clockwise and then push in the stopper again.

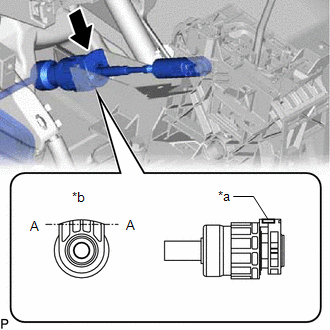

2. Connect the outer part of the transmission control cable assembly to the shift lever assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Stopper
   *b	Protrusion

   NOTE:

   After installation, check that the outer part of the cable lock is protruding beyond portion A-A as shown in the illustration.

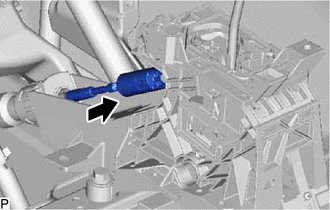

3. Connect the end of the transmission control cable assembly to the shift lever assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Check that the shift lever position sensor and the shift lever are in neutral.
   • Securely install the end of the transmission control cable assembly to the transmission floor shift assembly.
   • Install the end of the transmission control cable assembly so that its adjustment lock section is on the driver side.

See step  1

See step  3

Refer to INSTALLATION [10/2014 - 09/2017] , or refer to INSTALLATION [09/2017 - ]

Refer to INSTALLATION [10/2014 - ]
