Inspection [10/2014 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- INSPECT SHIFT LOCK CONTROL ECU
- Measure the voltage according to the value(s) in the table below.

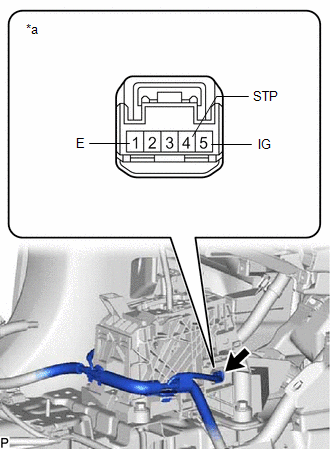

*a Front view of wire harness connector
(Shift Lock Control ECU)Standard Voltage
Tester Connection Condition Specified Condition 5 (IG) - Body ground Engine switch on (IG) 11 to 14 V Engine switch off Below 1 V 4 (STP) - Body ground Brake pedal depressed 11 to 14 V Brake pedal released Below 1 V HINT:
Do not disconnect the shift lever assembly connector.
If the result is not as specified, replace the shift lever assembly.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 1 (E) - Body ground Always Below 1 Ω HINT:
Do not disconnect the shift lever assembly connector.
If the result is not as specified, replace the shift lever assembly.
- Measure the voltage according to the value(s) in the table below.
- INSPECT TRANSMISSION CONTROL SWITCH
- Disconnect the transmission control switch connector.
- Measure the resistance according to the value(s) in the table below.

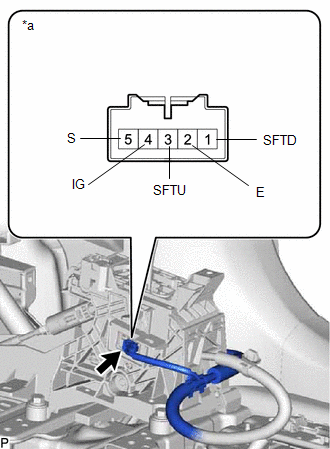

*a Component without harness connected
(Transmission Control Switch)Standard Resistance
Tester Connection Condition Specified Condition 4 (IG) - 5 (S) Shift lever in M, "+" or "-" Below 1 Ω 1 (SFTD) - 2 (E) Shift lever held in "-" (Down-shift) Below 1 Ω 3 (SFTU) - 2 (E) Shift lever held in "+" (Up-shift) Below 1 Ω 4 (IG) - 5 (S) Shift lever not in M, "+" or "-" 10 kΩ or higher 1 (SFTD) - 2 (E) Shift lever in M 10 kΩ or higher 3 (SFTU) - 2 (E) Shift lever in M 10 kΩ or higher If the result is not as specified, replace the shift lever assembly.
