Disassembly [10/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE SHIFT LEVER CAP

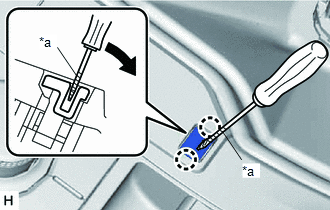

    1. Using a screwdriver with its tip wrapped with protective tape, detach the 2 claws and remove the shift lever cap from the shift position indicator.
      GTY516264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  2. REMOVE SHIFTING HOLE COVER SUB-ASSEMBLY

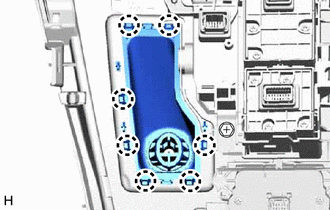

    1. Detach the 7 claws and remove the shifting hole cover sub-assembly from the rear upper console panel sub-assembly.
      GTY511625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SHIFT POSITION INDICATOR

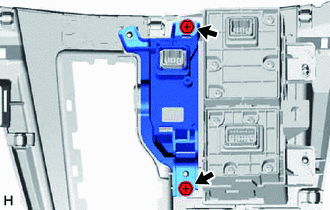

    1. Remove the 2 screws and shift position indicator from the rear upper console panel sub-assembly.
      GTY511657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
