Adjustment [10/2014 - ]: Procedure

Refer to PROCEDURE - Step 7 [10/2014 - 05/2019] , or refer to PROCEDURE - Step 7 [05/2019 - ]

Refer to PROCEDURE - Step 9 [10/2014 - 05/2019] , or refer to PROCEDURE - Step 9 [05/2019 - ]

See step  4

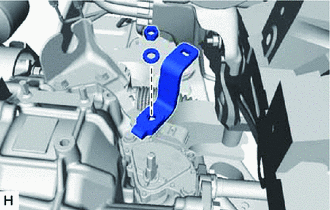

1. Remove the nut, washer and transmission control shaft lever from the manual valve lever shaft sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

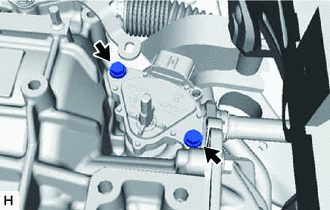

2. Loosen the 2 bolts of the park/neutral position switch assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Align the protrusions of the park/neutral position switch assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protrusion

4. Hold the park/neutral position switch assembly in position and tighten the 2 bolts.

   Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

   NOTE:

   After installing the park/neutral position switch assembly, confirm that the 2 protrusions on the park/neutral position switch assembly are aligned.

5. Install the transmission control shaft lever to the manual valve lever shaft sub-assembly with the nut and washer.

   Torque: 12.7 N.m (130 kgf/cm, 9 ft.lbf)

6. After the adjustment, perform the park/neutral position switch assembly operation check.

   See step  1

See step  2

Refer to PROCEDURE - Step 4 [10/2014 - 05/2019] , or refer to PROCEDURE - Step 6 [05/2019 - ]

Refer to PROCEDURE - Step 6 [10/2014 - 05/2019] , or refer to PROCEDURE - Step 6 [05/2019 - ]
