Components [10/2014 - ]

WARNING: This page is about a different variant/trim than selected.

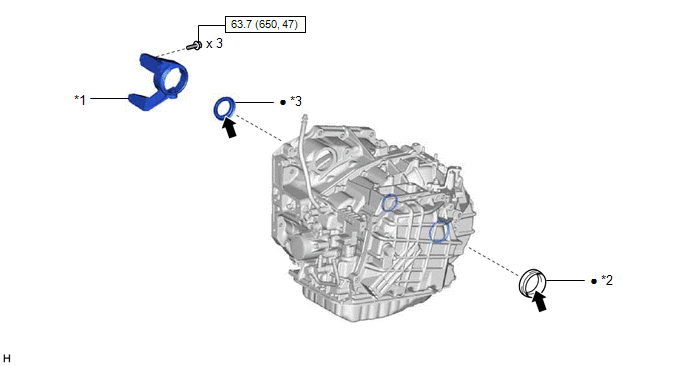

Fig 1: Differential Oil Seal Replacement Components With Torque Specifications
GTY521006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 DRIVE SHAFT BEARING BRACKET *2 FRONT DRIVE SHAFT OIL SEAL LH
*3 FRONT DRIVE SHAFT OIL SEAL RH - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
MP grease - -
