Inspection [10/2014 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- INSPECT ATF TEMPERATURE SENSOR ASSEMBLY
- Disconnect the ATF temperature sensor connector.
- Measure the resistance according to the value(s) in the table below.

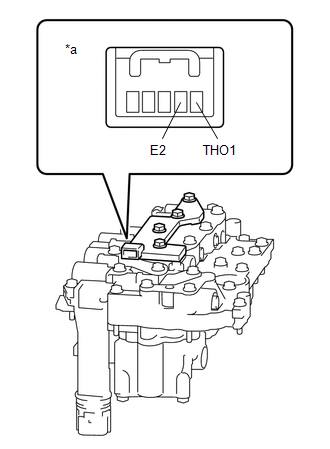

*a Component without TCM connected
(ATF Temperature Sensor Assembly)Standard Resistance
Tester Connection Condition Specified Condition THO1 - E2 Always 79 Ω to 156 kΩ THO1 - Body ground Always 10 kΩ or higher E2 - Body ground Always 10 kΩ or higher HINT:
If the resistance is out of the specified range at any of the ATF temperatures shown in the table below, the driveability of the vehicle may decrease.
Resistance (Reference)
ATF Temperature Specified Condition 10°C (50°F) 5 to 8 kΩ 25°C (77°F) 2.5 to 4.5 kΩ 110°C (230°F) 0.22 to 0.28 kΩ Result
Proceed to OK NG If the result is not as specified, replace the ATF temperature sensor assembly.
