Components [10/2014 - ]
WARNING: This page is about a different variant/trim than selected.

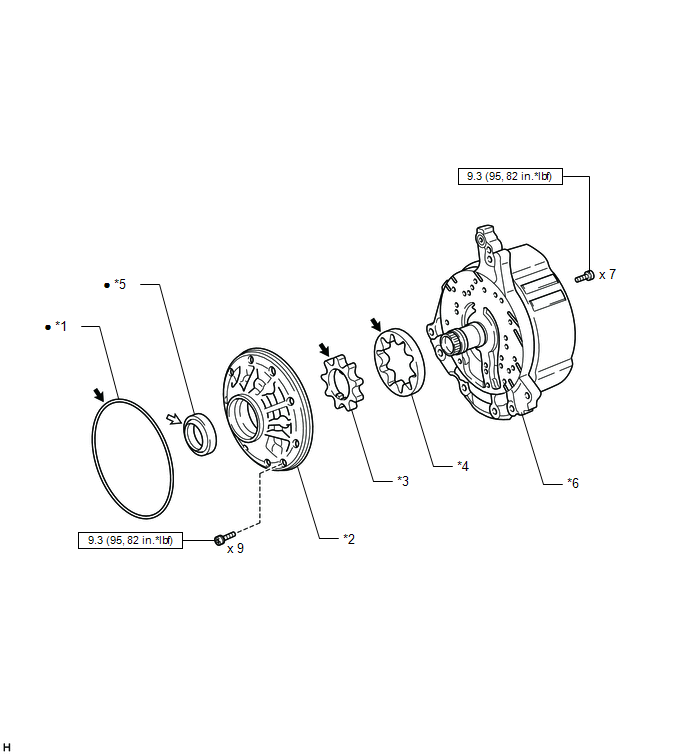

| Callout | Description | Callout | Description |
| *1 | FRONT OIL PUMP BODY O-RING | *2 | FRONT OIL PUMP BODY SUB-ASSEMBLY |
| *3 | FRONT OIL PUMP DRIVE GEAR | *4 | FRONT OIL PUMP DRIVEN GEAR |
| *5 | FRONT OIL PUMP OIL SEAL | *6 | STATOR SHAFT ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine ATF WS | MP grease |
