Disassembly [10/2014 - ]: Procedure

See step  1

See step  2

1. Put matchmarks on the front differential ring gear and front differential case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

2. Remove the 12 bolts from the front differential ring gear.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Using a plastic-faced hammer, tap on the front differential ring gear to remove it from the front differential case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Secure the front differential case in a vise between aluminum plates.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not overtighten the vise.

2. Using a 5 mm pin punch and a hammer, remove the front differential pinion shaft straight pin from the front differential case.
   NOTE:

   Before removing the front differential pinion shaft straight pin, unstake it with a pin punch.

1. Remove the front No. 1 differential pinion shaft from the front differential case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  3

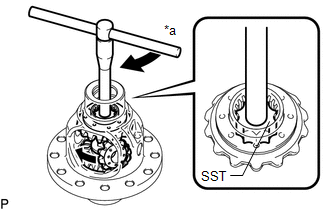

1. Install SST as shown in the illustration and tighten it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Turn

   *b

   Hold

   • SST: 09528-52010
     1. 09528-05010
     2. 09953-05010
   NOTE:

   Do not overtighten SST, as doing so will damage the 2 front differential side gears, 2 conical spring washers, 2 front No. 1 differential side gear thrust washers and front differential case.

   HINT:

   • Tighten SST until there is clearance between the front differential pinions and front differential side gears.
   • When removing the front differential pinions, do not overtighten SST, as it is necessary to rotate the front differential side gears.

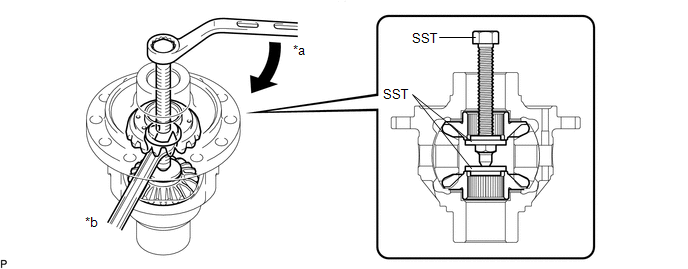

2. Install SST as shown in the illustration, rotate the front differential side gear, and then remove the 2 front differential pinions and 2 front differential pinion thrust washers from the front differential case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Turn

   • SST: 09528-52010
     1. 09528-05030
   NOTE:

   Do not drop the front differential pinion and front differential pinion thrust washer.

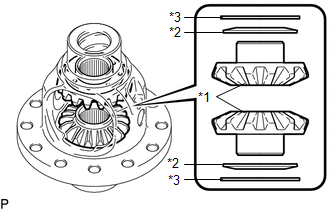

3. Remove SST from the front differential case, and then remove the 2 front differential side gears, 2 front No. 1 differential side gear thrust washers and 2 conical spring washers from the front differential case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Front Differential Side Gear
   *2	Conical Spring Washer
   *3	Front No. 1 Differential Side Gear Thrust Washer

   NOTE:

   Do not drop the front differential side gear, front No. 1 differential side gear thrust washer or conical spring washer.
