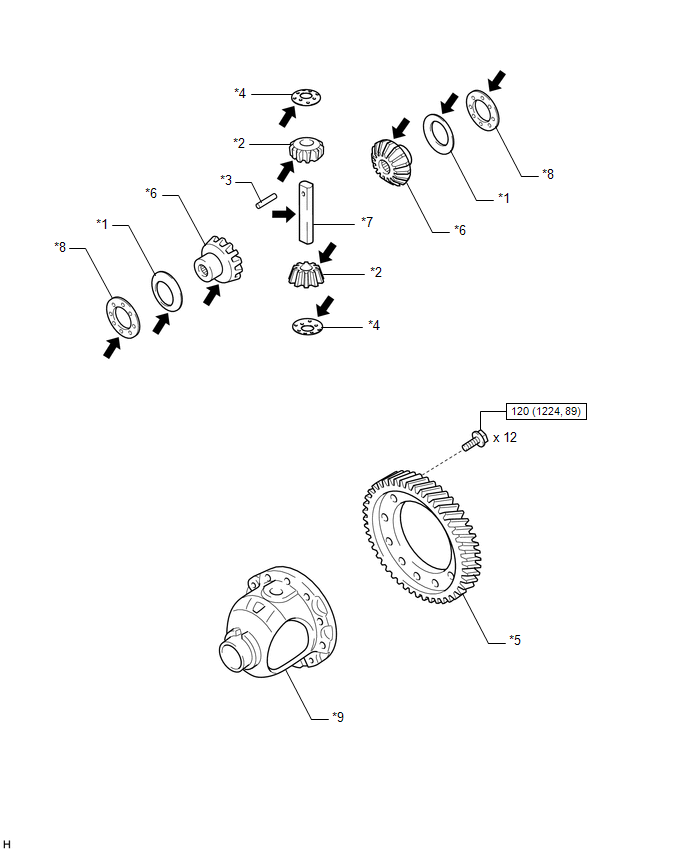

Components [10/2014 - ]
WARNING: This page is about a different variant/trim than selected.
| Callout | Description | Callout | Description |
| *1 | CONICAL SPRING WASHER | *2 | FRONT DIFFERENTIAL PINION |
| *3 | FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN | *4 | FRONT DIFFERENTIAL PINION THRUST WASHER |
| *5 | FRONT DIFFERENTIAL RING GEAR | *6 | FRONT DIFFERENTIAL SIDE GEAR |
| *7 | FRONT NO. 1 DIFFERENTIAL PINION SHAFT | *8 | FRONT NO. 1 DIFFERENTIAL SIDE GEAR THRUST WASHER |
| *9 | FRONT DIFFERENTIAL CASE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | Toyota Genuine ATF WS |
