Reassembly [10/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

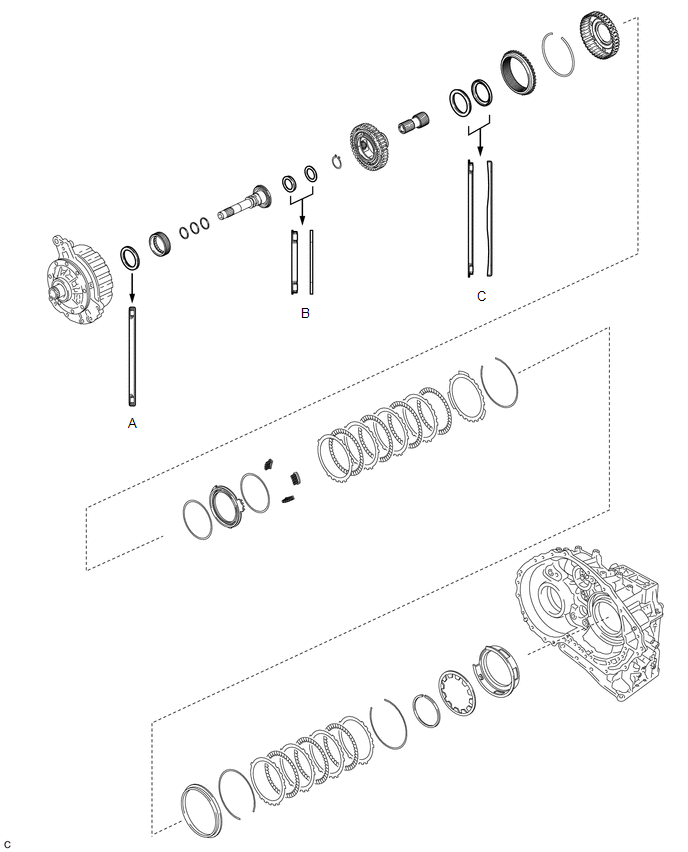

  1. BEARING POSITION
    1. Check each bearing position and installation direction.
      GTY627573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

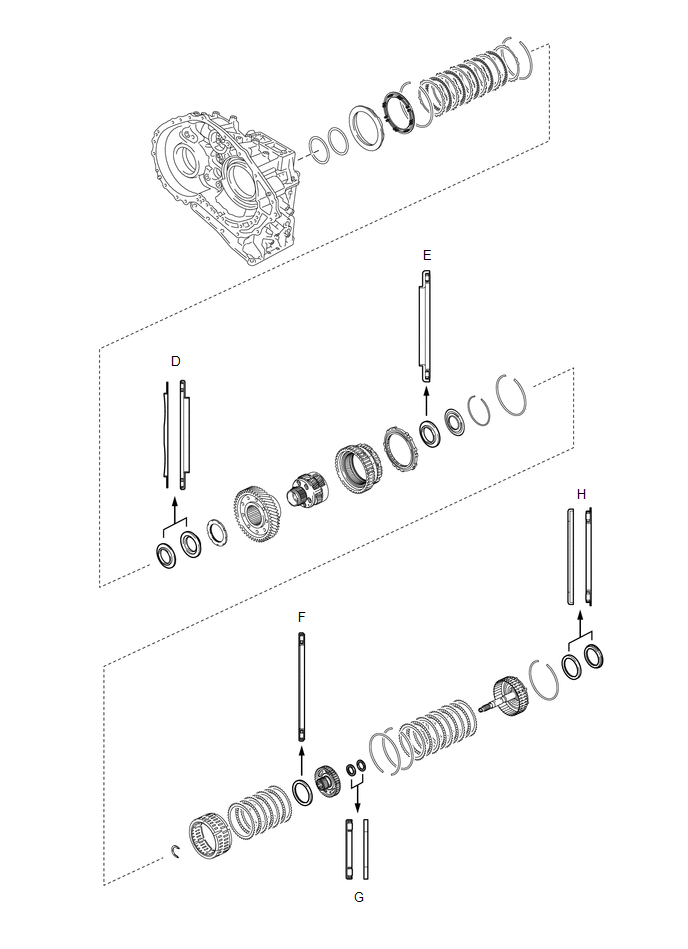

      GTY503471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Mark Front Race Diameter
      Inside / Outside mm (in.)      		 Thrust Bearing Diameter
      Inside / Outside mm (in.)      		 Rear Race Diameter
      Inside / Outside mm (in.)
      A - 57.7 (2.27) / 75.2 (2.96) -
      B - 29.1 (1.15) / 48 (1.89) 30.7 (1.21) / 48.3 (1.90)
      C - 62.6 (2.47) / 82.4 (3.24) 65.9 (2.59) / 80.3 (3.16)
      D 59.4 (2.34) / 77 (3.03) 53.1 (2.09) / 79 (3.11) -
      E - 56.1 (2.21) / 80.9 (3.19) -
      F - 61.2 (2.41) / 79 (3.11) -
      G - 28 (1.10) / 47.1 (1.85) 26.1 (1.03) / 44 (1.73)
      H 52.2 (2.06) / 70.4 (2.77) 48.9 (1.93) / 72.0 (2.84) -

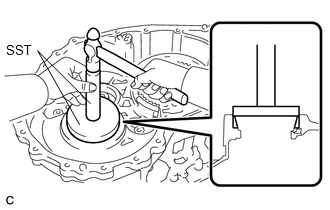

  2. INSTALL FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING OUTER RACE
    1. Using SST and a hammer, tap in a new front differential case rear tapered roller bearing outer race to the transaxle case.
      • SST: 09950-60020
        1. 09951-00790
      • SST: 09950-70010
        1. 09951-07150
      NOTE:

      Ensure that there is no clearance between the bearing and transaxle case.

      GTY505938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING OUTER RACE
    1. Install the shim to the transaxle housing.
    2. Using SST and a hammer, tap in a new front differential case front tapered roller bearing outer race to the transaxle housing.
      • SST: 09950-60010
        1. 09951-00480
      • SST: 09950-70010
        1. 09951-07150
      GTY496492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Ensure that there is no clearance between the bearing and transaxle housing.

  4. INSTALL FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING INNER RACE

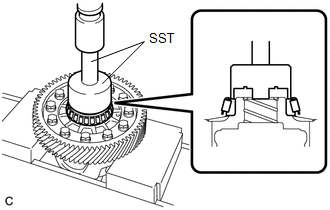

    1. Using SST and a press, install a new front differential case rear tapered roller bearing inner race to the front differential case.
      GTY530741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09726-36010
      • SST: 09950-70010
        1. 09951-07100
      NOTE:
      • Do not damage the front differential case rear tapered roller bearing inner race cage when installing the front differential case rear tapered roller bearing inner race.
      • Ensure that there is no clearance between the front differential case rear tapered roller bearing inner race and front differential case.

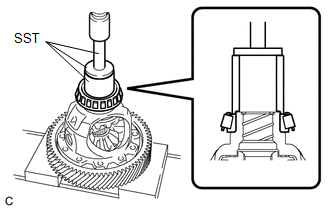

  5. INSTALL FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING INNER RACE
    1. Using SST and a press, install a new front differential case front tapered roller bearing inner race to the front differential case.
      GTY526797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09710-30012
        1. 09710-04081
      • SST: 09950-60010
        1. 09951-00480
      • SST: 09950-70010
        1. 09951-07100
      NOTE:
      • Do not damage the front differential case front tapered roller bearing inner race cage when installing the front differential case front tapered roller bearing inner race.
      • Ensure that there is no clearance between the front differential case front tapered roller bearing inner race and front differential case.
  6. ADJUST DIFFERENTIAL SIDE BEARING PRELOAD
    1. Remove any remaining seal packing from the contact surfaces of the transaxle housing and transaxle case sub-assembly.
    2. Install the front differential case to the transaxle case sub-assembly.
      GTY373387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the transaxle housing to the transaxle case sub-assembly with the 20 bolts.
      GTY453637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt (A)

      Torque: 30.6 N.m (312 kgf/cm, 23 ft.lbf)

      Bolt (B)

      Torque: 22.7 N.m (231 kgf/cm, 17 ft.lbf)

    4. Using SST, turn the differential case right and left 2 or 3 times to settle the bearings.
      GTY536603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09564-33010
    5. Using SST and a torque wrench, measure the turning torque of the counter driven gear while rotating SST at 10 rpm.
      • SST: 09564-33010

      Turning torque

      0.8 to 1.4 N.m (9 to 14 kgf/cm, 8 to 12 in.lbf)

      If the turning torque is not within the specified range, refer to the table below to select a shim so that the turning torque is within the specified range.

      SHIM THICKNESS: MM (IN.)

      No. Thickness No. Thickness
      90564-79054 2.000 (0.0787) 90564-79072 2.450 (0.0965)
      90564-79055 2.025 (0.0797) 90564-79073 2.475 (0.0974)
      90564-79056 2.050 (0.0807) 90564-79074 2.500 (0.0984)
      90564-79057 2.075 (0.0817) 90564-79075 2.525 (0.0994)
      90564-79058 2.100 (0.0827) 90564-79076 2.550 (0.100)
      90564-79059 2.125 (0.0837) 90564-79077 2.575 (0.101)
      90564-79060 2.150 (0.0846) 90564-79078 2.600 (0.102)
      90564-79061 2.175 (0.0856) 90564-79079 2.625 (0.103)
      90564-79062 2.200 (0.0866) 90564-79080 2.650 (0.104)
      90564-79063 2.225 (0.0876) 90564-79081 2.675 (0.105)
      90564-79064 2.250 (0.0886) 90564-79082 2.700 (0.106)
      90564-79065 2.275 (0.0896) 90564-79083 2.725 (0.107)
      90564-79066 2.300 (0.0906) 90564-79084 2.750 (0.108)
      90564-79067 2.325 (0.0915) 90564-79085 2.775 (0.109)
      90564-79068 2.350 (0.0925) 90564-79086 2.800 (0.110)
      90564-79069 2.375 (0.0935) 90564-79087 2.825 (0.111)
      90564-79070 2.400 (0.0945) 90564-79088 2.850 (0.112)
      90564-79071 2.425 (0.0955) 90564-79089 2.875 (0.113)
    6. Remove the 20 bolts and transaxle housing from the transaxle case sub-assembly.
      GTY425142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the front differential case from the transaxle case sub-assembly.
  7. INSTALL COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING OUTER RACE
    1. Using SST and a hammer, install a new counter driven gear rear tapered roller bearing outer race to the transaxle case sub-assembly.

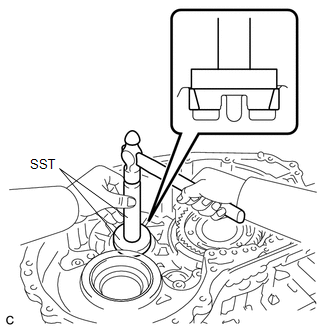

      GTY520193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        1. 09951-00650
      • SST: 09950-70010
        1. 09951-07100
      NOTE:

      Be sure to install the counter driven gear rear tapered roller bearing outer race so that there is no clearance between the counter driven gear rear tapered roller bearing outer race and the transaxle case sub-assembly. If there is any clearance, the turning torque of the counter drive gear cannot be measured correctly.

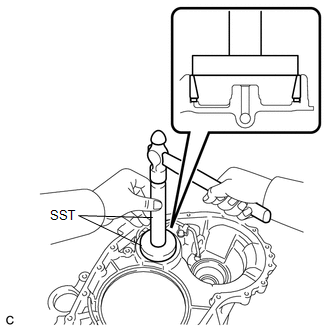

  8. INSTALL COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING OUTER RACE
    1. Install the shim to the transaxle housing.
      GTY518743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, install a new counter driven gear front tapered roller bearing outer race to the transaxle housing.
      • SST: 09950-60020
        1. 09951-00810
      • SST: 09950-70010
        1. 09951-07100
      NOTE:

      Be sure to install the counter driven gear front tapered roller bearing outer race so that there is no clearance between the shim and the transaxle housing.

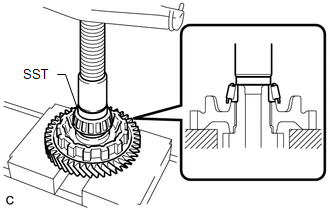

  9. INSTALL COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING INNER RACE
    1. Using SST and a press, install a new counter driven gear rear tapered roller bearing inner race to the counter driven gear.
      GTY498044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        1. 09951-00420
      NOTE:

      Be sure to install the counter driven gear rear tapered roller bearing inner race so that there is no clearance between the counter driven gear rear tapered roller bearing inner race and the counter driven gear. If there is any clearance, the turning torque of the counter drive gear cannot be measured correctly.

  10. INSTALL COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING INNER RACE

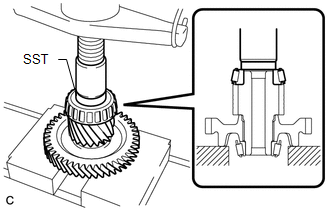

    1. Using SST and a press, install a new counter driven gear front tapered roller bearing inner race to the counter driven gear.
      GTY504484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        1. 09951-00530
      NOTE:

      Be sure to install the counter driven gear front tapered roller bearing inner race so that there is no clearance between the counter driven gear front tapered roller bearing inner race and the counter driven gear. If there is any clearance, the turning torque of the counter drive gear cannot be measured correctly.

  11. ADJUST COUNTER DRIVEN GEAR PRELOAD
    1. Install the counter driven gear and front differential case to the transaxle case sub-assembly.
      GTY373388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

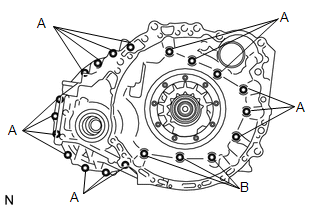

    2. Install the transaxle housing to the transaxle case sub-assembly with the 20 bolts.
      GTY497436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt (A)

      Torque: 30.6 N.m (312 kgf/cm, 23 ft.lbf)

      Bolt (B)

      Torque: 22.7 N.m (231 kgf/cm, 17 ft.lbf)

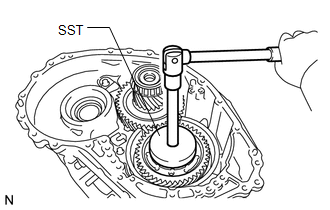

    3. Using SST and a torque wrench, measure the turning torque of the counter driven gear while rotating SST at 10 rpm.
      GTY530641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09564-33010

      Turning torque

      Differential Side Bearing Preload + 2.49 to 4.92 N.m (26 to 50 kgf/cm, 23 to 43 in.lbf)

      If the turning torque is not within the specified range, refer to the table below to select a shim for the counter driven gear front tapered roller bearing outer race so that the turning torque is within the specified range.

      SHIM THICKNESS: MM (IN.)

      No. Thickness No. Thickness
      90564-71014 2.000 (0.0787) 90564-71035 2.525 (0.0994)
      90564-71015 2.025 (0.0797) 90564-71036 2.550 (0.100)
      90564-71016 2.050 (0.0807) 90564-71037 2.575 (0.101)
      90564-71017 2.075 (0.0817) 90564-71038 2.600 (0.102)
      90564-71018 2.100 (0.0827) 90564-71039 2.625 (0.103)
      90564-71019 2.125 (0.0837) 90564-71040 2.650 (0.104)
      90564-71020 2.150 (0.0846) 90564-71041 2.675 (0.105)
      90564-71021 2.175 (0.0856) 90564-71042 2.700 (0.106)
      90564-71022 2.200 (0.0866) 90564-71043 2.725 (0.107)
      90564-71023 2.225 (0.0876) 90564-71044 2.750 (0.108)
      90564-71024 2.250 (0.0886) 90564-71045 2.775 (0.109)
      90564-71025 2.275 (0.0896) 90564-71046 2.800 (0.110)
      90564-71026 2.300 (0.0906) 90564-71047 2.825 (0.111)
      90564-71027 2.325 (0.0915) 90564-71048 2.850 (0.112)
      90564-71028 2.350 (0.0925) 90564-71049 2.875 (0.113)
      90564-71029 2.375 (0.0935) 90564-71050 2.900 (0.114)
      90564-71030 2.400 (0.0945) 90564-71051 2.925 (0.115)
      90564-71031 2.425 (0.0955) 90564-71052 2.950 (0.116)
      90564-71032 2.450 (0.0965) 90564-71053 2.975 (0.117)
      90564-71033 2.475 (0.0974) 90564-71054 3.000 (0.118)
      90564-71034 2.500 (0.0984) - -
    4. Remove the 20 bolts from the transaxle housing.
      GTY425142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the counter driven gear and front differential case from the transaxle case.
  12. INSTALL FRONT DRIVE SHAFT OIL SEAL LH
    1. Coat the lip of a new front drive shaft oil seal LH with MP grease.
    2. Using SST and a hammer, install the front drive shaft oil seal LH.
      GTY480025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09316-10010
      • SST: 09950-70010
        1. 09951-07100

      Standard depth

      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

      NOTE:
      • Make sure that the front drive shaft oil seal LH is installed in the correct direction.
      • Do not damage the front drive shaft oil seal LH lip.

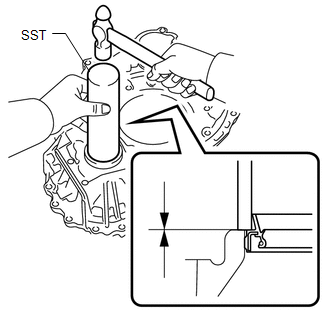

  13. INSTALL FRONT DRIVE SHAFT OIL SEAL RH
    1. Coat the lip of a new front drive shaft oil seal RH with MP grease.
    2. Using SST and a hammer, install the front drive shaft oil seal RH.
      • SST: 09316-60011
        1. 09316-00011

      Standard depth

      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

      GTY506177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Make sure that the front drive shaft oil seal RH is installed in the correct direction.
      • Do not damage the front drive shaft oil seal RH lip.

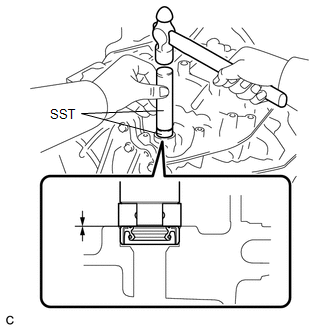

  14. INSTALL MANUAL VALVE LEVER SHAFT OIL SEAL
    1. Coat the lip of a new manual valve lever shaft oil seal with MP grease.
      GTY516137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a hammer, install the manual valve lever shaft oil seal to the transaxle case sub-assembly.
      • SST: 09950-60010
        1. 09951-00230
      • SST: 09950-70010
        1. 09951-07100

      Standard depth

      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

      NOTE:

      Be sure to install the manual valve lever shaft oil seal in the correct direction.

  15. INSTALL MANUAL VALVE LEVER SHAFT SUB-ASSEMBLY
    1. Install the manual valve lever shaft sub-assembly to the transaxle case sub-assembly.
      GTY452980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the manual valve lever shaft oil seal while installing the manual valve lever shaft sub-assembly to the transaxle case sub-assembly.

    2. Using needle-nose pliers, install the manual valve lever shaft retainer spring to the manual valve lever shaft sub-assembly.
      GTY310898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL PARKING LOCK ROD SUB-ASSEMBLY
    1. Align the protrusions with the notches on the manual valve lever shaft sub-assembly and install the parking lock rod sub-assembly.
      GTY431459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL MANUAL DETENT SPRING SUB-ASSEMBLY

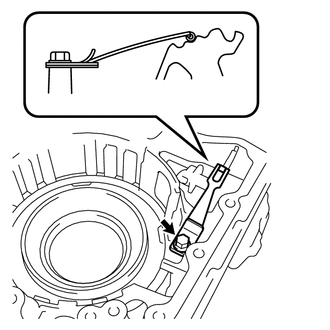

    1. Install the manual detent spring sub-assembly and cover to the transaxle case sub-assembly with the bolt.
      GTY499859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 22.7 N.m (231 kgf/cm, 17 ft.lbf)

      NOTE:
      • Make sure to install the manual detent spring sub-assembly first and then the cover.
      • Be sure to install the manual detent spring sub-assembly in the correct direction.

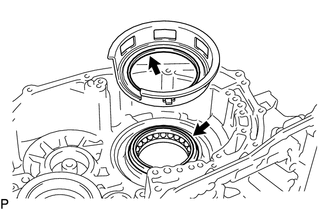

  18. INSTALL NO. 3 BRAKE PISTON
    1. Coat the contact surface of the transaxle case sub-assembly with ATF.
      GTY635304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Coat the lip of the No. 3 brake piston with ATF.
    3. Temporarily install the pawl stopper plate to the transaxle case sub-assembly with the 2 bolts.
      GTY112060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

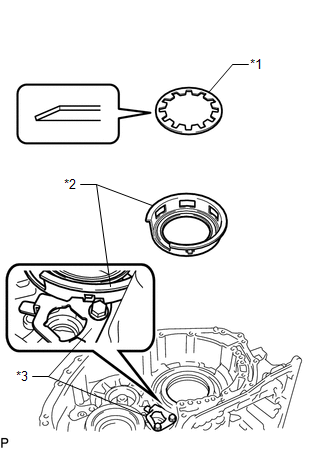

    4. Press the No. 3 brake piston into the transaxle case sub-assembly.
      GTY668266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Brake Piston Return Spring
      *2 No. 3 Brake Piston
      *3 Pawl Stopper Plate
      NOTE:
      • Make sure that the lip of the No. 3 brake piston is not twisted and does not get caught in the transaxle case sub-assembly.
      • After installation, make sure that the protrusions on the No. 3 brake piston and the grooves on the pawl stopper plate are aligned.

      HINT:

      Use the installation surface of the brake piston return spring to press the No. 3 brake piston into the transaxle case sub-assembly.

    5. Install the brake piston return spring to the transaxle case sub-assembly.
      NOTE:

      Be sure to install the brake piston return spring in the correct direction.

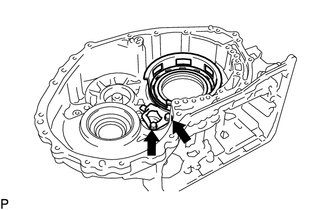

    6. Remove the 2 bolts and pawl stopper plate from the transaxle case sub-assembly.
      GTY635305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

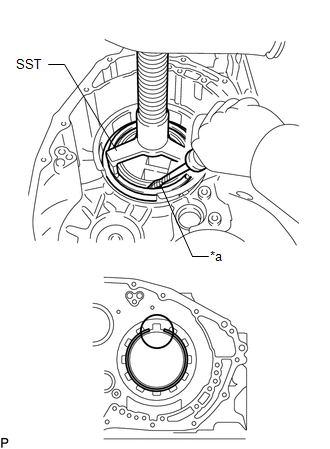

    7. Place SST on the brake piston return spring and compress the brake piston return spring using a press.
      GTY619754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      • SST: 09387-00070
      NOTE:

      Stop the press when the brake piston return spring is flush with the snap ring groove. This prevents the brake piston return spring from being deformed.

    8. Using a screwdriver, install the snap ring to the transaxle case sub-assembly as shown in the illustration.
      NOTE:
      • Confirm that the snap ring is correctly located in the groove of the transaxle case sub-assembly.
      • Be sure to orient the snap ring so that the edges do not protrude into one of the cutouts on the brake piston return spring as shown in the illustration.
      • Be careful not to damage the transaxle case sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

  19. INSTALL COUNTER DRIVE GEAR
    NOTE:

    Perform this procedure only when the counter drive gear bearing or transaxle case sub-assembly is replaced.

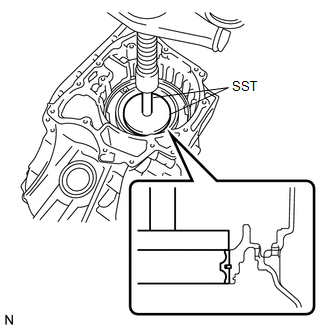

    1. Using SST and a press, install a new counter drive gear bearing and new snap ring to the transaxle case sub-assembly.
      GTY520161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60020
        1. 09951-01030
      • SST: 09950-70010
        1. 09951-07100
    2. Install 2 new balls of the counter drive gear bearing to the counter drive gear bearing.

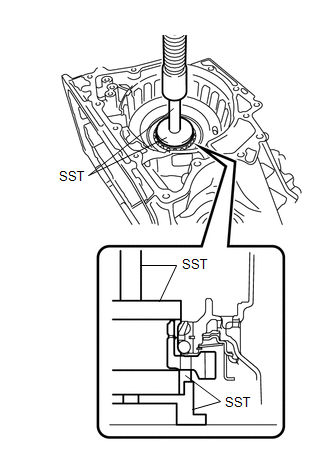

    3. Using SST, install the counter drive gear, a new bearing inner race (front side) and new bearing inner race (rear side) to the transaxle case sub-assembly.
      GTY512514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09223-15030
      • SST: 09527-17011
      • SST: 09950-70010
        1. 09951-07100
      • SST: 09950-60020
        1. 09951-00810
      NOTE:

      There should not be any clearance between the bearing inner race (front side) and counter drive gear.

  20. INSTALL FRONT PLANETARY GEAR ASSEMBLY

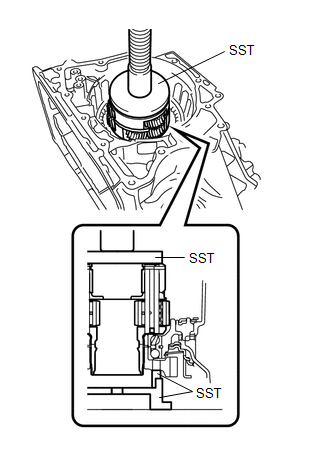

    1. Using SST and a press, install the front planetary gear assembly to the transaxle case sub-assembly.
      GTY502189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09223-15030
      • SST: 09527-17011
      • SST: 09951-01100
  21. INSTALL NO. 2 BRAKE PISTON
    1. Coat 2 new O-rings with ATF and install them to the No. 2 brake piston.
      GTY520051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
      NOTE:

      Ensure that the O-rings are not twisted.

    2. Install the No. 2 brake piston to the transaxle case sub-assembly.
      GTY129006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the O-rings.
      • Be sure to install the No. 2 brake piston in the correct direction.
  22. INSTALL 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY
    1. Install the 1st and reverse brake return spring sub-assembly to the transaxle case sub-assembly.

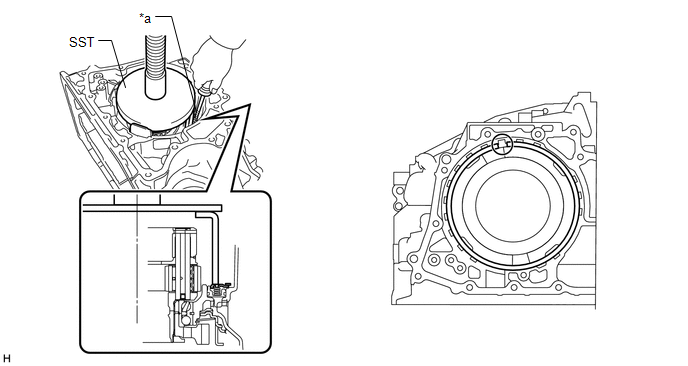

    2. Place SST on the 1st and reverse brake return spring sub-assembly and compress the 1st and reverse brake return spring sub-assembly using a press.
      GTY501712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape - -
      • SST: 09387-00060
      NOTE:

      Stop the press when the 1st and reverse brake return spring sub-assembly is flush with the snap ring groove. This prevents the 1st and reverse brake return spring sub-assembly from being deformed.

    3. Using a screwdriver, install the snap ring to the transaxle case sub-assembly as shown in the illustration.
      NOTE:
      • Confirm that the snap ring is correctly located in the groove of the transaxle case sub-assembly.
      • Be sure to orient the snap ring so that the edges do not protrude into one of the cutouts on the transaxle case sub-assembly as shown in the illustration.
      • Be careful not to damage the transaxle case sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

  23. INSTALL NO. 2 BRAKE DISC
    1. Install the 5 No. 2 brake discs, 5 No. 2 brake plates and No. 2 brake flange to the transaxle case sub-assembly.
      GTY499184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Brake Flange
      *2 No. 2 Brake Plate
      *3 No. 2 Brake Disc
      NOTE:

      Make sure that the No. 2 brake discs, No. 2 brake plates and No. 2 brake flange are installed in the correct order.

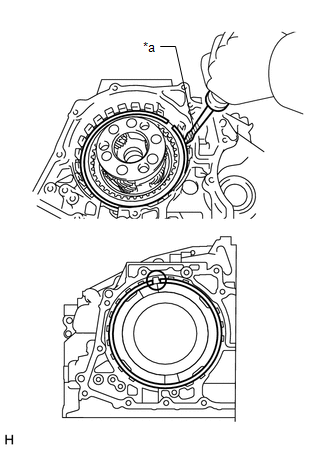

    2. Using a screwdriver, install the snap ring to the transaxle case sub-assembly.
      GTY512127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:
      • Confirm that the snap ring is correctly located in the groove of the transaxle case sub-assembly.
      • Be sure to orient the snap ring so that the edges do not protrude into one of the cutouts on the transaxle case sub-assembly as shown in the illustration.
      • Be careful not to damage the transaxle case sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

  24. INSPECT CLEARANCE OF NO. 2 BRAKE

    See step  15 [10/2014 - 09/2017], or see step  15 [09/2017 - ]

  25. INSTALL PLANETARY RING GEAR FLANGE
    1. Install the planetary ring gear flange to the planetary ring gear.
      GTY512878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Snap Ring
      *2 Planetary Ring Gear Flange
      *3 Planetary Ring Gear
    2. Using a screwdriver, install the snap ring to the planetary ring gear.
      NOTE:
      • Confirm that the snap ring is correctly located in the groove of the planetary ring gear.
      • Be careful not to damage the planetary ring gear and planetary ring gear flange.
      • Be sure to install the planetary ring gear flange in the correct direction.

      HINT:

      Tape the screwdriver tip before use.

  26. INSTALL PLANETARY RING GEAR

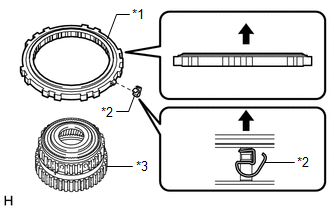

    1. Install the outer race retainer to the one-way clutch assembly.
      GTY508101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 One-way Clutch Assembly
      *2 Outer Race Retainer
      *3 Planetary Ring Gear
      Rear Side
      NOTE:

      Make sure that the outer race retainer is positioned in the correct direction as shown in the illustration.

    2. Install the planetary ring gear to the one-way clutch assembly.
      NOTE:

      Make sure that the one-way clutch assembly is positioned in the correct direction as shown in the illustration.

  27. INSTALL ONE-WAY CLUTCH ASSEMBLY

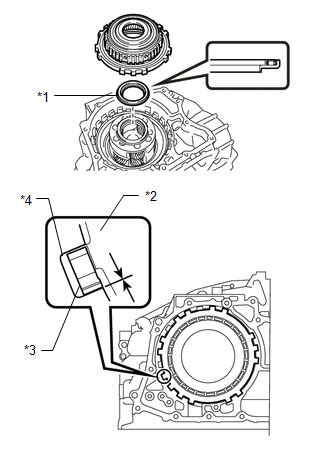

    1. Coat the thrust needle roller bearing with ATF and install it to the front planetary gear assembly.
      GTY501223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Thrust Needle Roller Bearing
      *2 One-way Clutch Assembly
      *3 Outer Race Retainer
      *4 Transaxle Case Sub-assembly
      THRUST NEEDLE ROLLER BEARING DIAMETER: MM (IN.)

      - Inside Outside
      Thrust needle roller bearing 62.7 (2.47) 80.9 (3.19)
      NOTE:

      Be sure to install the thrust needle roller bearing so that the temper colored side of the race is visible.

    2. Install the one-way clutch assembly with planetary ring gear to the transaxle case sub-assembly.
      NOTE:
      • Make sure that there is no clearance between the outer race retainer and the claw on the one-way clutch assembly. If there is any clearance, the spring of the retainer should be deformed.
      • Ensure that there is no clearance between the one-way clutch assembly and transaxle case sub-assembly.

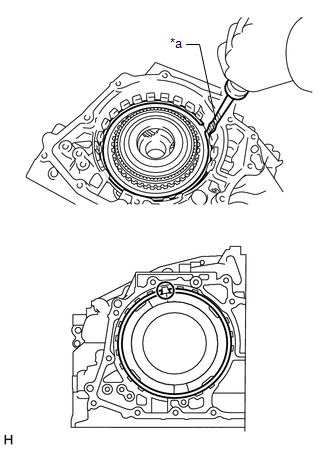

    3. Using a screwdriver, install the snap ring to the transaxle case sub-assembly.
      GTY507695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:
      • Confirm that the snap ring is correctly located in the groove of the transaxle case sub-assembly.
      • Be sure to orient the snap ring so that the edges do not protrude into one of the cutouts on the transaxle case sub-assembly as shown in the illustration.
      • Be careful not to damage the transaxle case sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

  28. INSTALL PARKING LOCK PAWL

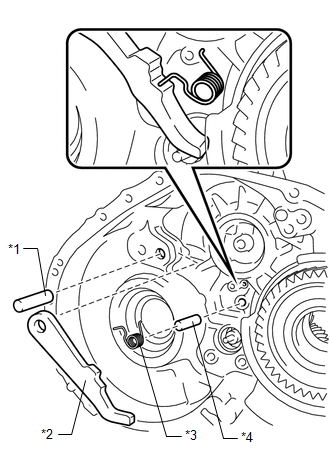

    1. Install the parking lock pawl to the transaxle case sub-assembly with the parking lock pawl shaft.
      GTY503351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Parking Lock Pawl Shaft
      *2 Parking Lock Pawl
      *3 Spring
      *4 Parking Lock Pawl Pin
    2. Install the parking lock pawl pin to the transaxle case sub-assembly.
    3. Install the spring to the parking lock pawl.
      NOTE:

      Make sure that one end of the spring is set in the hole of the transaxle case sub-assembly and the other end is positioned on the parking lock pawl as shown in the illustration.

  29. INSTALL PARKING LOCK SLEEVE
    1. Install the parking lock sleeve to the transaxle case sub-assembly.
      GTY453149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL PAWL STOPPER PLATE
    1. Install the pawl stopper plate to the transaxle case sub-assembly with the 2 bolts.
      GTY436399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 22.7 N.m (231 kgf/cm, 17 ft.lbf)

  31. INSTALL PAWL SHAFT CLAMP
    1. Install the pawl shaft clamp to the transaxle case sub-assembly with the bolt.
      GTY453147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 22.7 N.m (231 kgf/cm, 17 ft.lbf)

  32. INSTALL COUNTER DRIVEN GEAR
    1. Install the counter driven gear to the transaxle case sub-assembly.
      GTY436401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL COUNTER DRIVE GEAR NUT
    1. Turn the manual valve lever shaft sub-assembly 2 notches counterclockwise to set it to the P position as shown in the illustration.
      GTY512572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, install a new counter drive gear nut.
      GTY505430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09387-00130

      Torque: 120 N.m (1224 kgf/cm, 89 ft.lbf)

    3. Turn the manual valve lever shaft sub-assembly 2 notches clockwise to set it to the N position as shown in the illustration.
      GTY515831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

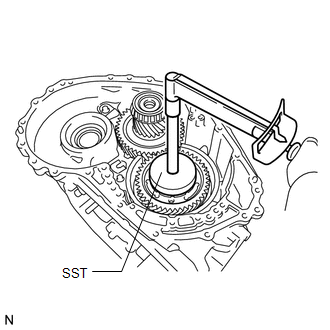

    4. Using SST and a torque wrench, measure the turning torque of the bearing while rotating SST at 60 rpm.
      GTY520926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09387-00130

      Turning torque

      0.1 to 0.2 N.m (1 to 2 kgf/cm, 0.9 to 1.7 in.lbf)

      If the measured value is not within the specified range, gradually tighten the counter drive gear nut until the turning falls within the specified range.

      Maximum torque

      180 N.m (1835 kgf/cm, 132 ft.lbf)

    5. Using SST and a hammer, stake the planetary gear assembly.
      GTY514039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09930-00010
      NOTE:
      • Do not grind the tip of SST with a grinder or other device.
      • Do not damage the threads of the front planetary gear assembly.
      • Clean the surrounding area after installation is complete.
  34. INSPECT FRONT DIFFERENTIAL PINION BACKLASH

    See step  3

  35. INSTALL FRONT DIFFERENTIAL CASE
    1. Install the front differential case to the transaxle case sub-assembly.
      GTY436402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL NO. 1 BRAKE PISTON
    1. Coat 2 new O-rings with ATF and install them to the No. 1 brake piston.
      GTY516251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
      NOTE:

      Ensure that the O-rings are not twisted.

    2. Install the No. 1 brake piston to the front oil pump assembly.
      GTY142676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the O-rings.

  37. INSTALL 2ND BRAKE PISTON RETURN SPRING SUB-ASSEMBLY
    1. Install the 3 2nd brake piston return spring sub-assemblies to the front oil pump assembly.
      GTY314331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Make sure that the 3 2nd brake piston return spring sub-assemblies are installed to the protrusions on the front oil pump assembly.

  38. INSTALL NO. 1 BRAKE DISC

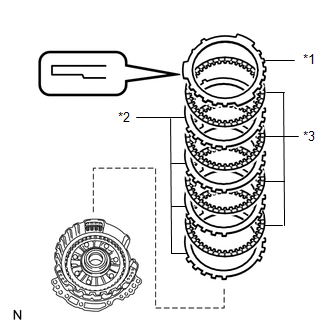

    1. Install the 4 No. 1 brake discs, 4 No. 1 brake plates and No. 1 brake flange to the front oil pump assembly.
      GTY516167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Brake Flange
      *2 No. 1 Brake Plate
      *3 No. 1 Brake Disc
      NOTE:
      • Make sure that the No. 1 brake discs, No. 1 brake plates, and No. 1 brake flange are installed in the correct order.
      • Be sure to install the No. 1 brake flange in the correct direction.

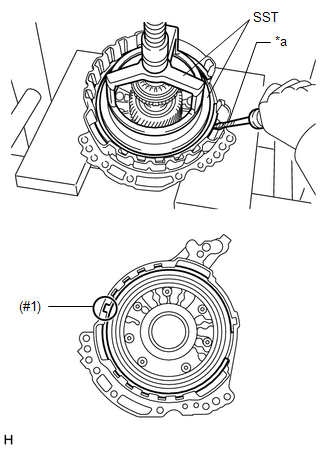

    2. Place SST on the No. 1 brake flange and compress the No. 1 brake flange using a press.
      GTY504627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      • SST: 09387-00070
      • SST: 09495-65040
      NOTE:

      Stop the press when the 2nd brake piston return spring sub-assemblies is flush with the snap ring groove. This prevents the 2nd brake piston return spring sub-assemblies from being deformed.

    3. Using a screwdriver, install the snap ring to the front oil pump assembly as shown in the illustration (#1).
      NOTE:
      • Confirm that the snap ring is correctly located in the groove of the front oil pump assembly.
      • Make sure to align the protruding part of the snap ring with the cutout (#1) of the front oil pump assembly shown in the illustration to install the snap ring.
      • Be careful not to damage the front oil pump assembly.

      HINT:

      Tape the screwdriver tip before use.

    4. Install the brake snap ring stopper to the front oil pump assembly.
      GTY204935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be sure to install the brake snap ring stopper in the correct direction.

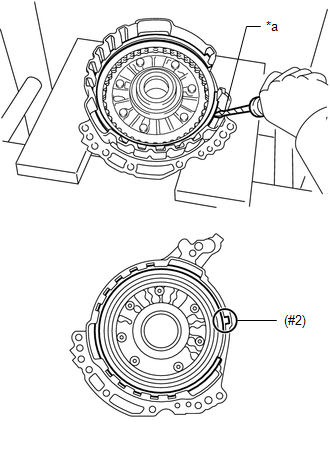

    5. Using a screwdriver, install the snap ring to the front oil pump assembly as shown in the illustration (#2).
      GTY510027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:
      • Confirm that the snap ring is correctly located in the groove of the front oil pump assembly.
      • Make sure to align the protruding part of the snap ring with the cutout (#2) of the front oil pump assembly shown in the illustration to install the snap ring.
      • Be careful not to damage the front oil pump assembly.

      HINT:

      Tape the screwdriver tip before use.

    6. Check that the brake snap ring stopper can be turned by hand.
      GTY434027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Snap Ring
      *2 Brake Snap Ring Stopper
      *a Correctly installed
      NOTE:

      If the brake snap ring stopper cannot be turned by hand, the brake snap ring stopper may have been installed upside down, or a snap ring may not have been completely located in the groove on the front oil pump assembly. Remove and reinstall the snap ring and the brake snap ring stopper.

  39. INSPECT CLEARANCE OF NO. 1 BRAKE

    See step  16 [10/2014 - 09/2017], or see step  16 [09/2017 - ]

  40. INSTALL UNDERDRIVE PLANETARY SUN GEAR

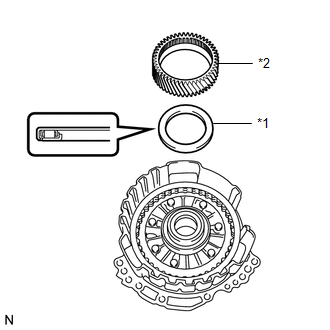

    1. Coat the thrust needle roller bearing with ATF and install it to the front oil pump assembly.
      GTY512877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Thrust Needle Roller Bearing
      *2 Underdrive Planetary Sun Gear
      THRUST NEEDLE ROLLER BEARING DIAMETER: MM (IN.)

      - Inside Outside
      Thrust needle roller bearing 57.7 (2.27) 75.2 (2.96)
      NOTE:

      Be sure to install the thrust needle roller bearing in the correct direction.

    2. Install the underdrive planetary sun gear to the front oil pump assembly.
  41. INSTALL INPUT SHAFT SUB-ASSEMBLY
    1. Coat 3 new input shaft oil seal rings with ATF and install them to the input shaft sub-assembly.
      GTY513568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Thrust Needle Roller Race
      *2 Thrust Needle Roller Bearing
      *3 Input Shaft Sub-assembly
      *4 Input Shaft Oil Seal Ring
      NOTE:

      Do not expand the gap of the input shaft oil seal rings excessively.

    2. Coat the thrust needle roller bearing and thrust needle roller race with ATF, and install them to the input shaft sub-assembly.
      THRUST NEEDLE ROLLER BEARING AND THRUST NEEDLE ROLLER RACE DIAMETER: MM (IN.)

      - Inside Outside
      Thrust needle roller bearing 29.1 (1.15) 48 (1.89)
      Thrust needle roller race 30.7 (1.21) 48.3 (1.90)
      NOTE:

      Be sure to install the thrust needle roller bearing in the correct direction.

    3. Install the input shaft sub-assembly to the front oil pump assembly.
      GTY312619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. INSTALL PLANETARY SUN GEAR SUB-ASSEMBLY
    1. Using a snap ring expander, install the snap ring to the underdrive planetary gear assembly.
      GTY512403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Planetary Sun Gear Sub-assembly
      *2 Underdrive Planetary Gear Assembly
      *3 Snap Ring
    2. Using a snap ring expander, install the planetary sun gear sub-assembly to the underdrive planetary gear assembly with the snap ring expanded.
  43. INSTALL UNDERDRIVE PLANETARY RING GEAR

    HINT:

    Perform this procedure only when replacement of the underdrive planetary ring gear or No. 3 brake hub is necessary.

    1. Using a snap ring expander, install the new snap ring to the new underdrive planetary ring gear.
      GTY455763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not expand the snap ring excessively.

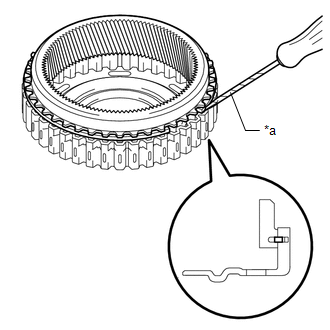

    2. While compressing the snap ring with a screwdriver, install the underdrive planetary ring gear to the new No. 3 brake hub.
      GTY496813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:
      • Confirm that the snap ring is correctly located in the groove of the No. 3 brake hub.
      • Be careful not to damage the underdrive planetary ring gear and No. 3 brake hub.

      HINT:

      Tape the screwdriver tip before use.

  44. INSTALL NO. 3 BRAKE HUB
    1. Coat the thrust needle roller bearing and thrust needle roller race with ATF and install them to the underdrive planetary gear assembly.
      GTY495667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Thrust Needle Roller Race
      *2 Thrust Needle Roller Bearing
      THRUST NEEDLE ROLLER BEARING AND THRUST NEEDLE ROLLER RACE DIAMETER: MM (IN.)

      - Inside Outside
      Thrust needle roller bearing 62.6 (2.46) 82.4 (3.24)
      Thrust needle roller race 65.9 (2.59) 80.3 (3.16)
      NOTE:

      Be sure to install the thrust needle roller bearing and thrust needle roller race in the correct direction.

    2. Install the No. 3 brake hub to the underdrive planetary gear assembly.
      GTY314612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. INSTALL UNDERDRIVE PLANETARY GEAR ASSEMBLY
    1. Install the underdrive planetary gear assembly to the front oil pump assembly.
      GTY314589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. INSTALL NO. 3 BRAKE DISC
    1. Install the 2 No. 3 brake flanges, 3 No. 3 brake discs and 2 No. 3 brake plates to the front oil pump assembly.
      GTY508174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 3 Brake Flange
      *2 No. 3 Brake Plate
      *3 No. 3 Brake Disc
      NOTE:

      Make sure that the No. 3 brake discs, No. 3 brake plates and No. 3 brake flanges are installed in the correct order.

    2. Using a screwdriver, install the snap ring to the front oil pump assembly.
      GTY505137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Confirm that the snap ring is correctly located in the groove of the front oil pump assembly.
      • Make sure that the snap ring ends are positioned as shown in the illustration (A).
      • Be careful not to damage the front oil pump assembly.

      HINT:

      Tape the screwdriver tip before use.

  47. INSPECT CLEARANCE OF NO. 3 BRAKE

    See step  17 [10/2014 - 09/2017], or see step  17 [09/2017 - ]

  48. INSTALL FRONT OIL PUMP BODY O-RING
    1. Coat a new front oil pump body O-ring with ATF and install it to the front oil pump body assembly.
      GTY432310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. INSTALL FRONT OIL PUMP ASSEMBLY
    1. Coat a new O-ring with ATF and install it to the transaxle case sub-assembly.
      GTY520877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Thrust Needle Roller Bearing
      *2 O-ring
    2. Coat the thrust needle roller bearing with ATF.
    3. Install the thrust needle roller bearing to the counter drive gear nut.
      THRUST NEEDLE ROLLER BEARING DIAMETER: MM (IN.)

      - Inside Outside
      Thrust needle roller bearing 53.1 (2.09) 79 (3.11)
      NOTE:

      Be sure to install the thrust needle roller bearing in the correct direction.

    4. Coat the thrust needle roller race with MP grease.
    5. Install the thrust needle roller race to the underdrive planetary gear assembly.
      GTY520370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Thrust Needle Roller Race
      THRUST NEEDLE ROLLER RACE DIAMETER: MM (IN.)

      - Inside Outside
      Thrust needle roller race 59.4 (2.34 in.) 77 (3.03 in.)
      NOTE:

      Be sure to install the thrust needle roller race in the correct direction.

    6. Coat a new gasket with ATF and install it to the front oil pump assembly.
      GTY519930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Gasket
    7. Install the front oil pump assembly to the transaxle case sub-assembly with the 7 bolts.

      Torque: 22.7 N.m (231 kgf/cm, 17 ft.lbf)

  50. INSTALL DIFFERENTIAL GEAR LUBE APPLY TUBE
    1. Install the differential gear lube apply tube to the transaxle housing.
      GTY425141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Insert the differential gear lube apply tube to the transaxle housing until it makes contact with the stopper.

    2. Install the clamp to the differential gear lube apply tube with the bolt.

      Torque: 22.7 N.m (231 kgf/cm, 17 ft.lbf)

      NOTE:

      There should be clearance between the differential gear lube apply tube and clamp.

  51. INSTALL TRANSAXLE HOUSING
    1. Clean and degrease the 3 bolts and the installation holes in the transaxle case sub-assembly.
      GTY449999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove any remaining seal packing from the contact surfaces of the transaxle housing and transaxle case sub-assembly.
      NOTE:

      Make sure that there is no ATF on the contact surfaces of the transaxle housing and transaxle case sub-assembly.

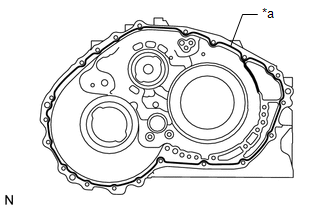

    3. Apply seal packing to the transaxle case sub-assembly.
      GTY508868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Seal Packing

      Seal packing

      Toyota Genuine Seal Packing 1281, Three Bond 1281 or equivalent

      NOTE:

      Apply seal packing in a continuous line (width 1.2 mm (0.0472 in.)) along the sealing surface of the transaxle case sub-assembly.

    4. Install the transaxle housing to the transaxle case sub-assembly with the 17 bolts.

      Torque: 30.6 N.m (312 kgf/cm, 23 ft.lbf)

      GTY431650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Apply adhesive to 2 or 3 threads on the ends of the 3 bolts.
      GTY431648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

      NOTE:

      In order to ensure proper installation of the 3 bolts, apply adhesive to the 3 bolts and install them within 10 minutes of adhesive application.

    6. Install the 3 bolts.

      Torque: 22.7 N.m (231 kgf/cm, 17 ft.lbf)

  52. INSTALL NO. 1 CLUTCH DISC
    1. Install the No. 1 clutch flange, 4 No. 1 clutch discs and 4 No. 1 clutch plates to the direct multiple disc clutch assembly.
      GTY512250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Clutch Flange
      *2 No. 1 Clutch Plate
      *3 No. 1 Clutch Disc
      NOTE:

      Make sure that the No. 1 clutch flange, No. 1 clutch discs and No. 1 clutch plates are installed in the correct order.

    2. Using a screwdriver, install the 2 snap rings to the direct multiple disc clutch assembly.
      GTY436426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Confirm that the snap rings are correctly located in the groove of the direct multiple disc clutch assembly.
      • Be careful not to damage the direct multiple disc clutch assembly.

      HINT:

      Tape the screwdriver tip before use.

  53. INSPECT CLEARANCE OF NO. 1 CLUTCH DISC

    See step  18 [10/2014 - 09/2017], or see step  18 [09/2017 - ]

  54. INSTALL REAR PLANETARY SUN GEAR ASSEMBLY
    1. Coat the thrust needle roller bearing and thrust needle roller race with ATF and install them to the direct multiple disc clutch assembly.
      GTY500413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Thrust Needle Roller Bearing
      *2 Thrust Needle Roller Race
      THRUST NEEDLE ROLLER BEARING AND THRUST NEEDLE ROLLER RACE DIAMETER: MM (IN.)

      - Inside Outside
      Thrust needle roller bearing 28 (1.10) 47.1 (1.85)
      Thrust needle roller race 26.1 (1.03) 44 (1.73)
      NOTE:

      Be sure to install the thrust needle roller bearing in the correct direction.

    2. Install the rear planetary sun gear assembly to the direct multiple disc clutch assembly.
      GTY453152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a snap ring expander, install the snap ring to the direct multiple disc clutch assembly.
      GTY436419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not expand the snap ring excessively.

  55. INSTALL NO. 2 CLUTCH DISC
    1. Install the No. 2 clutch flange, 3 No. 2 clutch discs and 3 No. 2 clutch plates to the direct multiple disc clutch assembly.
      GTY496081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Clutch Plate
      *2 No. 2 Clutch Disc
      *3 No. 2 Clutch Flange
      NOTE:

      Make sure that the No. 2 clutch flange, No. 2 clutch discs and No. 2 clutch plates are installed in the correct order.

  56. INSTALL DIRECT MULTIPLE DISC CLUTCH SNAP RING
    1. Install the No. 2 direct clutch piston to the direct multiple disc clutch assembly.
      GTY111585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be sure to engage the claws on the direct multiple disc clutch assembly in the grooves on the No. 2 direct clutch piston.

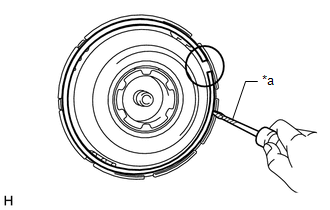

    2. Using a screwdriver, install the direct multiple disc clutch snap ring to the direct multiple disc clutch assembly.
      GTY496284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:
      • Position the opening of the direct multiple disc clutch snap ring as shown in the illustration.
      • Confirm that the direct multiple disc clutch snap ring is correctly located in the groove of the direct multiple disc clutch assembly.
      • Be careful not to damage the direct multiple disc clutch assembly.

      HINT:

      Tape the screwdriver tip before use.

  57. INSPECT CLEARANCE OF NO. 2 CLUTCH DISC

    See step  19 [10/2014 - 09/2017], or see step  19 [09/2017 - ]

  58. INSTALL DIRECT MULTIPLE DISC CLUTCH ASSEMBLY
    1. Coat a new O-ring with ATF and install it to the direct multiple disc clutch assembly
      GTY521361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Intermediate Shaft Oil Seal
      *2 O-ring
    2. Coat a new intermediate shaft oil seal with ATF and install it to the direct multiple disc clutch assembly.

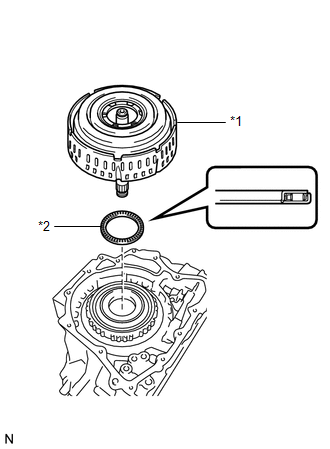

    3. Coat the thrust needle roller bearing with ATF and install it to the transaxle case sub-assembly.
      GTY516914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Direct Multiple Disc Clutch Assembly
      *2 Thrust Needle Roller Bearing
      THRUST NEEDLE ROLLER BEARING DIAMETER: MM (IN.)

      - Inside Outside
      Thrust needle roller bearing 61.2 (2.41) 79 (3.11)
      NOTE:

      Be sure to install the thrust needle roller bearing in the correct direction.

    4. Install the direct multiple disc clutch assembly to the transaxle case sub-assembly.
    5. Clean the contact surfaces of the transaxle case sub-assembly and rear transaxle cover sub-assembly.
    6. Place a straightedge on the multiple direct clutch drum and measure the distance between the transaxle case sub-assembly and the straightedge using a vernier caliper (Dimension A).
      GTY497272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Dimension A

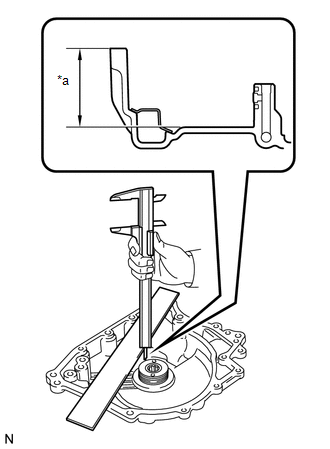

    7. Using a vernier caliper and a straightedge, measure the distance shown in the illustration (Dimension B).
      GTY502887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Dimension B
    8. Calculate the end play value using the following formula:

      End play = Dimension B - Dimension A - Thrust needle roller bearing thickness

      End play

      0.007 to 1.113 mm (0.000276 to 0.0438 in.)

  59. INSTALL REAR TRANSAXLE COVER SUB-ASSEMBLY

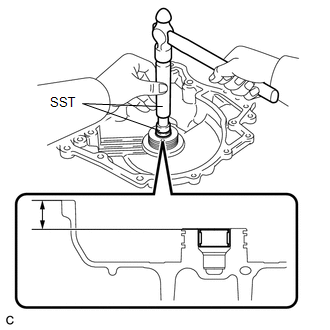

    1. Using SST and a hammer, install a new needle roller bearing to the rear transaxle cover sub-assembly.
      GTY504638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        1. 09951-00220
      • SST: 09950-70010
        1. 09951-07100

      Standard depth

      21.5 to 21.9 mm (0.846 to 0862 in.)

    2. Apply adhesive to the 2 "TORX" screws.

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

      NOTE:

      In order to ensure proper installation of the 2 "TORX" screws, apply adhesive to the 2 "TORX" screws and install them within 10 minutes of adhesive application.

    3. Using a T30 "TORX" socket wrench, install the rear transaxle cover plate to the rear transaxle cover sub-assembly with the 2 "TORX" screws.
      GTY450694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

    4. Coat 2 new oil seal rings with ATF and install them to the rear transaxle cover sub-assembly.
      GTY505663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Oil Seal Ring
      NOTE:
      • Confirm that the 2 oil seal rings are correctly located in the grooves of the rear transaxle cover sub-assembly.
      • Do not expand the oil seal ring excessively.
    5. Coat the thrust needle roller bearing and thrust needle roller race with MP grease and install them to the rear transaxle cover sub-assembly.
      GTY512673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Thrust Needle Roller Bearing
      *2 Thrust Needle Roller Race
      THRUST NEEDLE ROLLER BEARING AND THRUST NEEDLE ROLLER RACE DIAMETER: MM (IN.)

      - Inside Outside
      Thrust needle roller bearing 48.9 (1.93) 72.0 (2.84)
      Thrust needle roller race 52.2 (2.06) 70.4 (2.77)
      NOTE:

      Be sure to install the thrust needle roller bearing and thrust needle roller race in the correct direction.

    6. Coat 3 new O-rings with ATF and install them to the transaxle case sub-assembly.
      GTY425143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Ensure that the O-rings are not twisted.

    7. Clean and degrease the 2 bolts and installation holes in the transaxle case sub-assembly.
      GTY449997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove any remaining seal packing from the contact surfaces of the rear transaxle cover sub-assembly and transaxle case sub-assembly.
      GTY454683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Seal Packing
      NOTE:

      Make sure that there is no ATF on the contact surfaces.

    9. Apply seal packing to the transaxle case sub-assembly.

      Seal packing

      Toyota Genuine Seal Packing 1281, Three Bond 1281 or equivalent

      NOTE:

      Apply seal packing in a continuous line (width 1.2 mm (0.0472 in.)) along the sealing surface of the rear transaxle cover sub-assembly.

    10. Install the rear transaxle cover sub-assembly to the transaxle case with the 12 bolts.

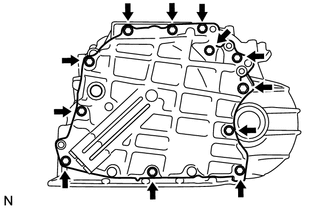

      GTY511011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 22.7 N.m (231 kgf/cm, 17 ft.lbf)

    11. Apply adhesive to 2 or 3 threads on the ends of the 2 bolts.

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

      NOTE:

      In order to ensure proper installation of the 2 bolts, apply adhesive to the 2 bolts and install them within 10 minutes of adhesive application.

    12. Install the 2 bolts.

      Torque: 16.9 N.m (172 kgf/cm, 12 ft.lbf)

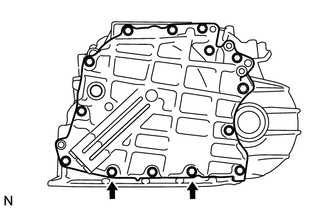

      GTY511012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    13. Install a new gasket to the refill plug.
      GTY203698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    14. Install the refill plug to the rear transaxle cover sub-assembly.

      Torque: 49 N.m (500 kgf/cm, 36 ft.lbf)

  60. INSPECT INPUT SHAFT SUB-ASSEMBLY END PLAY

    See step  2 [10/2014 - 09/2017], or see step  2 [09/2017 - ]

  61. INSTALL TRANSAXLE CASE GASKET
    1. Coat 2 new transaxle case gaskets with ATF and install them to the transaxle case sub-assembly.
      GTY425144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  62. INSTALL TRANSMISSION VALVE BODY ASSEMBLY
    1. Coat the O-ring of the transmission wire with ATF.
    2. Insert the pin of the manual valve lever shaft sub-assembly into the groove on the end of the manual valve and install the transmission valve body assembly to the transaxle case sub-assembly with the 11 bolts.

      Torque: 10.8 N.m (110 kgf/cm, 8 ft.lbf)

      Bolt Length

      Bolt Length (mm (in.))
      A 25 mm (0.984)
      B 30 mm (1.181)
      C 35 mm (1.378)
      D 55 mm (2.165)
      NOTE:
      • When installing the transmission valve body assembly, be careful not to allow the transmission revolution sensor and transaxle case sub-assembly to interfere with each other.
      • First, temporarily tighten the bolts marked *a in the illustration because they are positioning bolts.

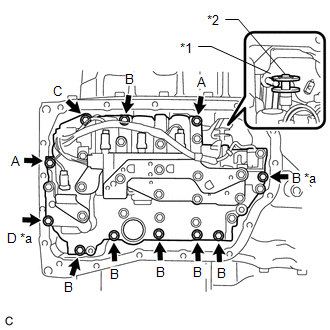

      GTY504286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Manual Valve Lever Shaft Sub-assembly
      *2 Manual Valve
      *a Positioning Bolt
  63. INSTALL VALVE BODY OIL STRAINER ASSEMBLY
    1. Coat a new O-ring with ATF and install it to the valve body oil strainer assembly.
      GTY503367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
      NOTE:

      Ensure that the O-ring is not twisted or pinched.

    2. Install the valve body oil strainer assembly to the transmission valve body assembly with the 2 bolts.
      GTY425039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10.8 N.m (110 kgf/cm, 8 ft.lbf)

  64. INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY
    1. Install the 2 transmission oil cleaner magnets to the automatic transaxle oil pan sub-assembly as shown in the illustration.
      GTY455638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transmission Oil Cleaner Magnet
    2. Install a new automatic transaxle oil pan gasket to the automatic transaxle oil pan sub-assembly.
    3. Clean and degrease the bolt and the installation hole in the automatic transaxle assembly.
      GTY449998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the automatic transaxle oil pan sub-assembly with automatic transaxle oil pan gasket to the transaxle case with the 17 bolts.

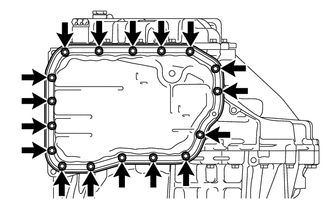

      GTY499861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

      NOTE:

      Completely remove any oil or grease from the contact surfaces of the transaxle case and automatic transaxle oil pan sub-assembly with automatic transaxle oil pan gasket before installation.

    5. Apply adhesive to the bolt.

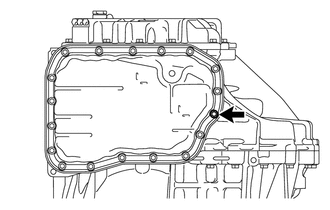

      GTY499860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Adhesive

      Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

      NOTE:

      In order to ensure proper installation of the bolt, apply adhesive to the bolt and install it within 10 minutes of adhesive application.

    6. Install the bolt.

      Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)

    7. Using a 6 mm hexagon socket wrench, install the No. 1 transmission oil filler tube to the automatic transaxle oil pan sub-assembly.
      GTY507328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 1.7 N.m (17 kgf/cm, 15 in.lbf)

    8. Using a 6 mm hexagon socket wrench, install the overflow plug and a new gasket to the automatic transaxle oil pan sub-assembly.

      Torque: 40 N.m (408 kgf/cm, 30 ft.lbf)

  65. INSTALL NO. 2 TRANSAXLE CASE PLUG
    1. Install 3 new gaskets to the 3 No. 2 transaxle case plugs.
    2. Apply adhesive to the 3 No. 2 transaxle case plugs.

      Adhesive

      Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

      NOTE:

      In order to ensure proper installation of the 3 No. 2 transaxle case plugs, apply adhesive to the 3 No. 2 transaxle case plugs and install them within 10 minutes of adhesive application.

    3. Using a 6 mm hexagon socket wrench, install the 3 No. 2 transaxle case plugs to the transaxle housing.
      GTY313827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 17 N.m (173 kgf/cm, 13 ft.lbf)

  66. INSTALL NO. 1 TRANSAXLE CASE PLUG
    1. Coat 6 new O-rings with ATF and install them to the 6 No. 1 transaxle case plugs.
      GTY513064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Ensure that the O-ring is not twisted or pinched.

    2. Install the 6 No. 1 transaxle case plugs to the transaxle case sub-assembly and rear transaxle cover sub-assembly.

      Torque: 7.4 N.m (75 kgf/cm, 65 in.lbf)

  67. INSTALL OIL COOLER TUBE ELBOW
    1. Coat a new O-ring with ATF and install it to the oil cooler tube elbow.

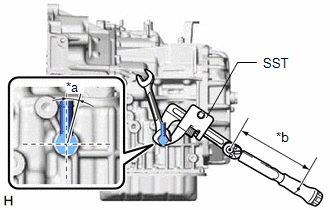

      GTY519568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 0 to 15°
      *b Torque Wrench Fulcrum Length
    2. Using SST, install the oil cooler tube elbow to the transaxle case sub-assembly.
      • SST: 09922-10010

      Torque: 27 N.m (275 kgf/cm, 20 ft.lbf)

      HINT:

  68. INSTALL OIL COOLER UNION SUB-ASSEMBLY
    1. Temporarily install the oil cooler union sub-assembly to the transaxle case sub-assembly with the bolt.

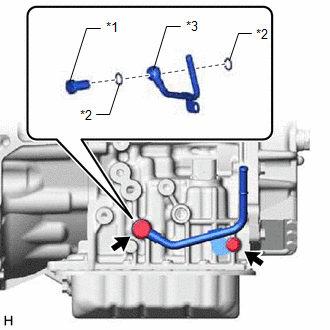

      GTY501358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Union Bolt
      *2 Gasket
      *3 oil cooler union sub-assembly
    2. Install 2 new gaskets to the union bolt and contact surface of the oil cooler union sub-assembly and transaxle case sub-assembly.
    3. Install the union bolt to the oil cooler union sub-assembly.

      Torque: 27.5 N.m (280 kgf/cm, 20 ft.lbf)

    4. Tighten the bolt.

      Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

  69. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Align the protrusions of the park/neutral position switch assembly.
      GTY429642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion
    2. Install the park/neutral position switch assembly to the transaxle case sub-assembly with the 2 bolts.
      GTY513103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

      NOTE:
      • Before installing the park/neutral position switch assembly, remove any dirt or rust on the manual valve lever shaft sub-assembly. Be sure to install the park/neutral position switch assembly straight along the manual valve lever shaft sub-assembly while being careful not to deform the plate spring that supports the manual valve lever shaft sub-assembly. If the plate spring is deformed, the park/neutral position switch assembly cannot be reinstalled correctly.
      • After installing the park/neutral position switch assembly, confirm that the 2 protrusions on the park/neutral position switch assembly are aligned.
    3. Install the transmission control shaft lever to the manual valve lever shaft sub-assembly with the washer and nut.
      GTY520931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 12.7 N.m (130 kgf/cm, 9 ft.lbf)

  70. INSTALL BREATHER PLUG HOSE
    1. Coat a new O-ring with ATF and install it to the No. 2 breather plug (ATM).
      GTY507291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Breather Plug (ATM)
      *2 Breather Plug Hose
      *3 No. 2 Breather Plug (ATM)
      *4 O-ring
      NOTE:

      Ensure that the O-ring is not twisted or pinched.

    2. Install the No. 1 breather plug (ATM) and No. 2 breather plug (ATM) to the breather plug hose.
    3. Install the breather plug hose to the transaxle case sub-assembly.
      GTY513101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
