Components [10/2014 - ]

WARNING: This page is about a different variant/trim than selected.

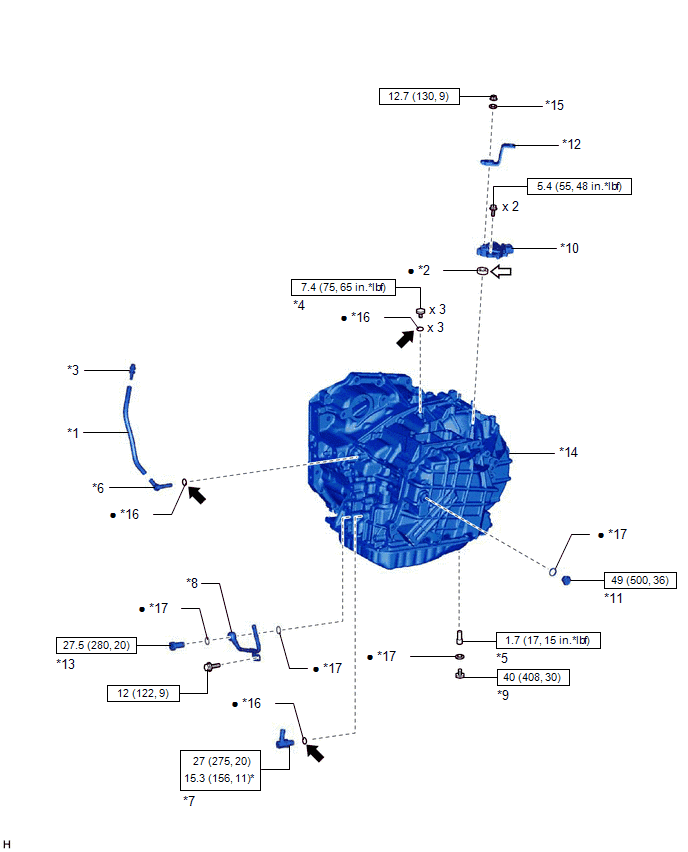

Fig 1: Automatic Transaxle Unit Replacement Components With Torque Specifications (1 Of 8)
GTY516730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BREATHER PLUG HOSE *2 MANUAL VALVE LEVER SHAFT OIL SEAL
*3 NO. 1 BREATHER PLUG (ATM) *4 NO. 1 TRANSAXLE CASE PLUG
*5 NO. 1 TRANSMISSION OIL FILLER TUBE *6 NO. 2 BREATHER PLUG (ATM)
*7 OIL COOLER TUBE ELBOW *8 OIL COOLER UNION SUB-ASSEMBLY
*9 OVERFLOW PLUG *10 PARK/NEUTRAL POSITION SWITCH ASSEMBLY
*11 REFILL PLUG *12 TRANSMISSION CONTROL SHAFT LEVER
*13 UNION BOLT *14 AUTOMATIC TRANSAXLE ASSEMBLY
*15 WASHER *16 O-RING
*17 GASKET - -
N.m (kgf/cm, ft.lbf): Specified torque * For use with SST
• Non-reusable part Toyota Genuine ATF WS
MP grease - -

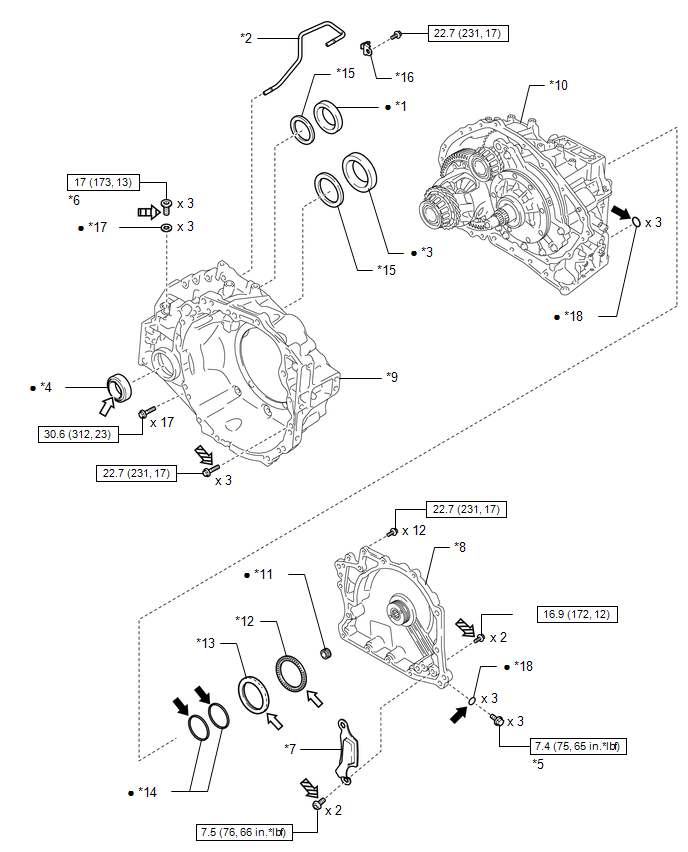

Fig 2: Automatic Transaxle Unit Replacement Components With Torque Specifications (2 Of 8)
GTY512066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING OUTER RACE *2 DIFFERENTIAL GEAR LUBE APPLY TUBE
*3 FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING OUTER RACE *4 FRONT DRIVE SHAFT OIL SEAL RH
*5 NO. 1 TRANSAXLE CASE PLUG *6 NO. 2 TRANSAXLE CASE PLUG
*7 REAR TRANSAXLE COVER PLATE *8 REAR TRANSAXLE COVER SUB-ASSEMBLY
*9 TRANSAXLE HOUSING *10 TRANSAXLE CASE SUB-ASSEMBLY
*11 NEEDLE ROLLER BEARING *12 THRUST NEEDLE ROLLER BEARING
*13 THRUST NEEDLE ROLLER RACE *14 OIL SEAL RING
*15 SHIM *16 CLAMP
*17 GASKET *18 O-RING
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Toyota Genuine ATF WS MP grease
Toyota Genuine Adhesive 1324 Toyota Genuine Adhesive 1344
* Precoated part - -

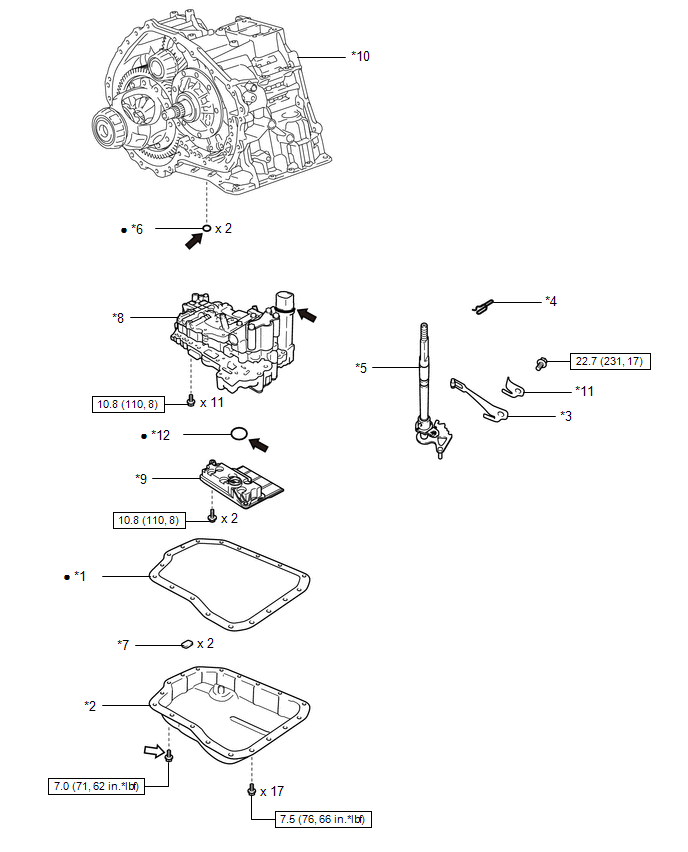

Fig 3: Automatic Transaxle Unit Replacement Components With Torque Specifications (3 Of 8)
GTY517423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AUTOMATIC TRANSAXLE OIL PAN GASKET *2 AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY
*3 MANUAL DETENT SPRING SUB-ASSEMBLY *4 MANUAL VALVE LEVER SHAFT RETAINER SPRING
*5 MANUAL VALVE LEVER SHAFT SUB-ASSEMBLY *6 TRANSAXLE CASE GASKET
*7 TRANSMISSION OIL CLEANER MAGNET *8 TRANSMISSION VALVE BODY ASSEMBLY
*9 VALVE BODY OIL STRAINER ASSEMBLY *10 AUTOMATIC TRANSAXLE ASSEMBLY
*11 COVER *12 O-RING
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Toyota Genuine ATF WS Toyota Genuine Adhesive 1344
* Precoated part - -

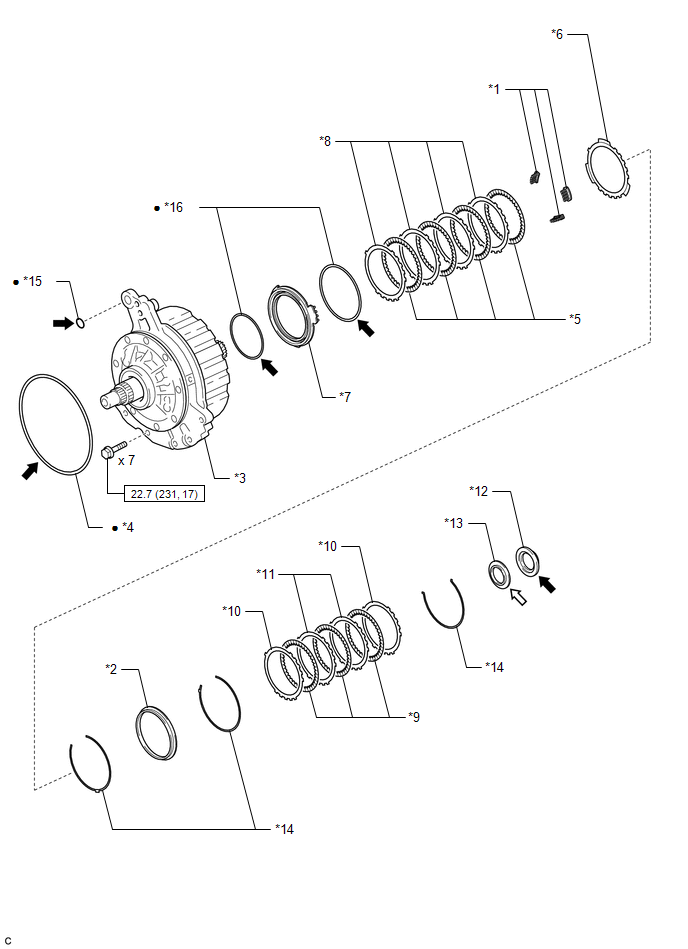

Fig 4: Automatic Transaxle Unit Replacement Components With Torque Specifications (4 Of 8)
GTY518978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 2ND BRAKE PISTON RETURN SPRING SUB-ASSEMBLY *2 BRAKE SNAP RING STOPPER
*3 FRONT OIL PUMP ASSEMBLY *4 FRONT OIL PUMP BODY O-RING
*5 NO. 1 BRAKE DISC *6 NO. 1 BRAKE FLANGE
*7 NO. 1 BRAKE PISTON *8 NO. 1 BRAKE PLATE
*9 NO. 3 BRAKE DISC *10 NO. 3 BRAKE FLANGE
*11 NO. 3 BRAKE PLATE *12 THRUST NEEDLE ROLLER BEARING
*13 THRUST NEEDLE ROLLER RACE *14 SNAP RING
*15 GASKET *16 O-RING
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Toyota Genuine ATF WS MP grease

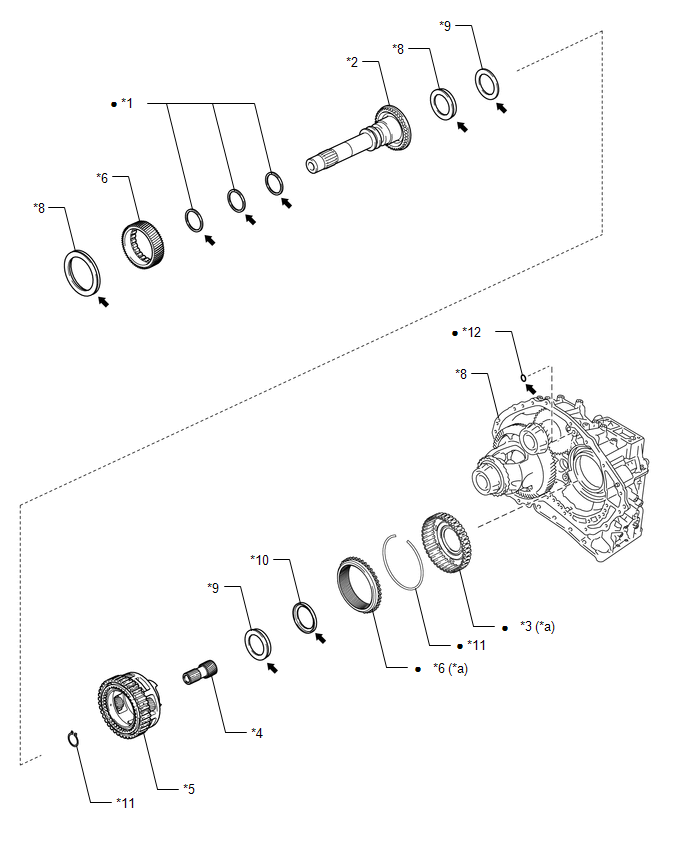

Fig 5: Automatic Transaxle Unit Replacement Components With Torque Specifications (5 Of 8)
GTY497529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 INPUT SHAFT OIL SEAL RING *2 INPUT SHAFT SUB-ASSEMBLY
*3 NO. 3 BRAKE HUB *4 PLANETARY SUN GEAR SUB-ASSEMBLY
*5 UNDERDRIVE PLANETARY GEAR ASSEMBLY *6 UNDERDRIVE PLANETARY RING GEAR
*7 UNDERDRIVE PLANETARY SUN GEAR *8 TRANSAXLE CASE SUB-ASSEMBLY
*9 THRUST NEEDLE ROLLER BEARING *10 THRUST NEEDLE ROLLER RACE
*11 SNAP RING *12 O-RING
*a Once assembled, the underdrive planetary ring gear and No. 3 brake hub cannot be separated. When the underdrive planetary ring gear or No. 3 brake hub is replaced, prepare the following.
-UNDERDRIVE PLANETARY RING GEAR
-SNAP RING
-NO. 3 BRAKE HUB		 - -
• Non-reusable part Toyota Genuine ATF WS

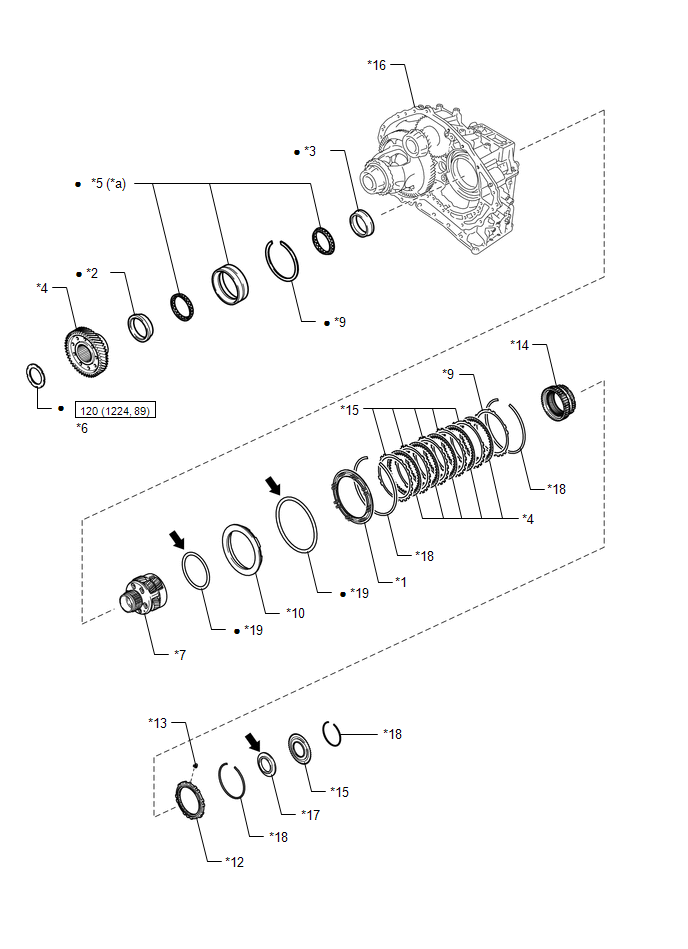

Fig 6: Automatic Transaxle Unit Replacement Components With Torque Specifications (6 Of 8)
GTY513099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY *2 BEARING INNER RACE (FRONT SIDE)
*3 BEARING INNER RACE (REAR SIDE) *4 COUNTER DRIVE GEAR
*5 COUNTER DRIVE GEAR BEARING *6 COUNTER DRIVE GEAR NUT
*7 FRONT PLANETARY GEAR ASSEMBLY *8 NO. 2 BRAKE DISC
*9 NO. 2 BRAKE FLANGE *10 NO. 2 BRAKE PISTON
*11 NO. 2 BRAKE PLATE *12 ONE-WAY CLUTCH ASSEMBLY
*13 OUTER RACE RETAINER *14 PLANETARY RING GEAR
*15 PLANETARY RING GEAR FLANGE *16 TRANSAXLE CASE SUB-ASSEMBLY
*17 THRUST NEEDLE ROLLER BEARING *18 SNAP RING
*19 O-RING - -
*a The counter drive gear bearing cannot be separated from the transaxle case. When the counter drive gear bearing or transaxle case is replaced, prepare the following.
- COUNTER DRIVE GEAR BEARING
- SNAP RING
- TRANSAXLE CASE SUB-ASSEMBLY		 - -
• Non-reusable part Toyota Genuine ATF WS

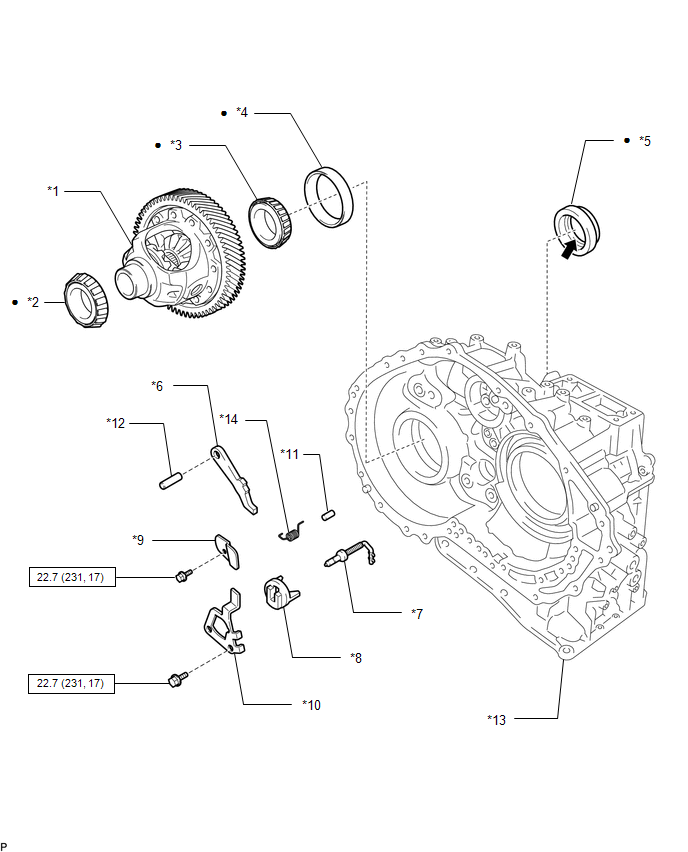

Fig 7: Automatic Transaxle Unit Replacement Components With Torque Specifications (7 Of 8)
GTY527916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT DIFFERENTIAL CASE *2 FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING INNER RACE
*3 FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING INNER RACE *4 FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING OUTER RACE
*5 FRONT DRIVE SHAFT OIL SEAL LH *6 PARKING LOCK PAWL
*7 PARKING LOCK ROD SUB-ASSEMBLY *8 PARKING LOCK SLEEVE
*9 PAWL SHAFT CLAMP *10 PAWL STOPPER PLATE
*11 PARKING LOCK PAWL PIN *12 PARKING LOCK PAWL SHAFT
*13 TRANSAXLE CASE SUB-ASSEMBLY *14 SPRING
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Toyota Genuine ATF WS - -

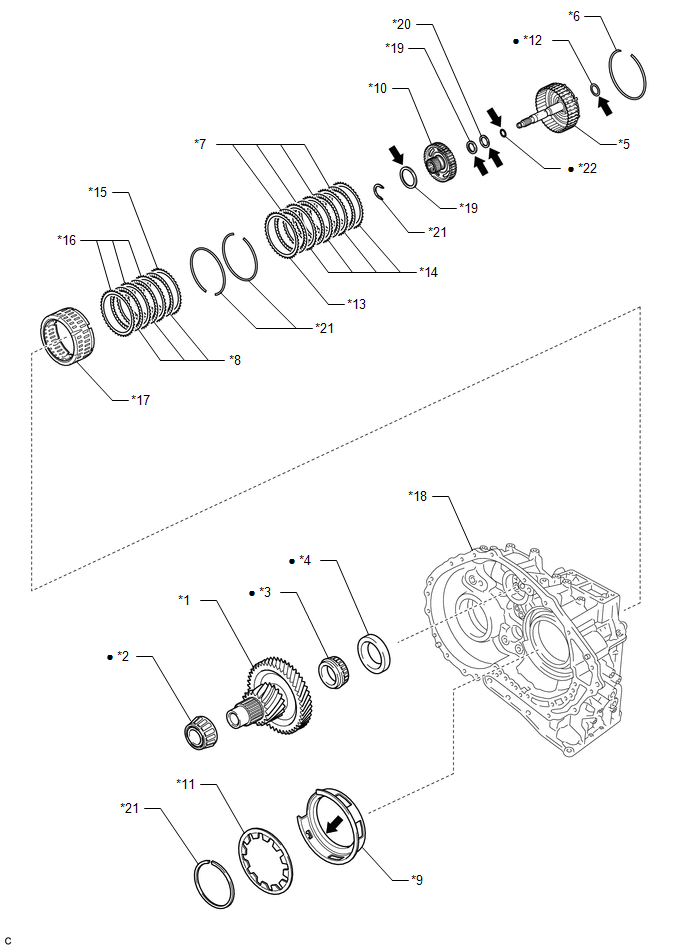

Fig 8: Automatic Transaxle Unit Replacement Components (8 Of 8)
GTY670099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COUNTER DRIVE GEAR *2 COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING
*3 COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING *4 COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING OUTER RACE
*5 DIRECT MULTIPLE DISC CLUTCH ASSEMBLY *6 DIRECT MULTIPLE DISC CLUTCH SNAP RING
*7 NO. 1 CLUTCH DISC *8 NO. 2 CLUTCH DISC
*9 NO. 3 BRAKE PISTON *10 REAR PLANETARY SUN GEAR ASSEMBLY
*11 BRAKE PISTON RETURN SPRING *12 INTERMEDIATE SHAFT OIL SEAL
*13 NO. 1 CLUTCH FLANGE *14 NO. 1 CLUTCH PLATE
*15 NO. 2 CLUTCH FLANGE *16 NO. 2 CLUTCH PLATE
*17 NO. 2 DIRECT CLUTCH PISTON *18 TRANSAXLE CASE SUB-ASSEMBLY
*19 THRUST NEEDLE ROLLER BEARING *20 THRUST NEEDLE ROLLER RACE
*21 SNAP RING *22 O-RING
• Non-reusable part Toyota Genuine ATF WS
