System Diagram [09/2017 - 05/2019]

WARNING: This page is about a different variant/trim than selected.

The configuration of the electronic control system in the U661E automatic transaxle is as shown in the following chart.

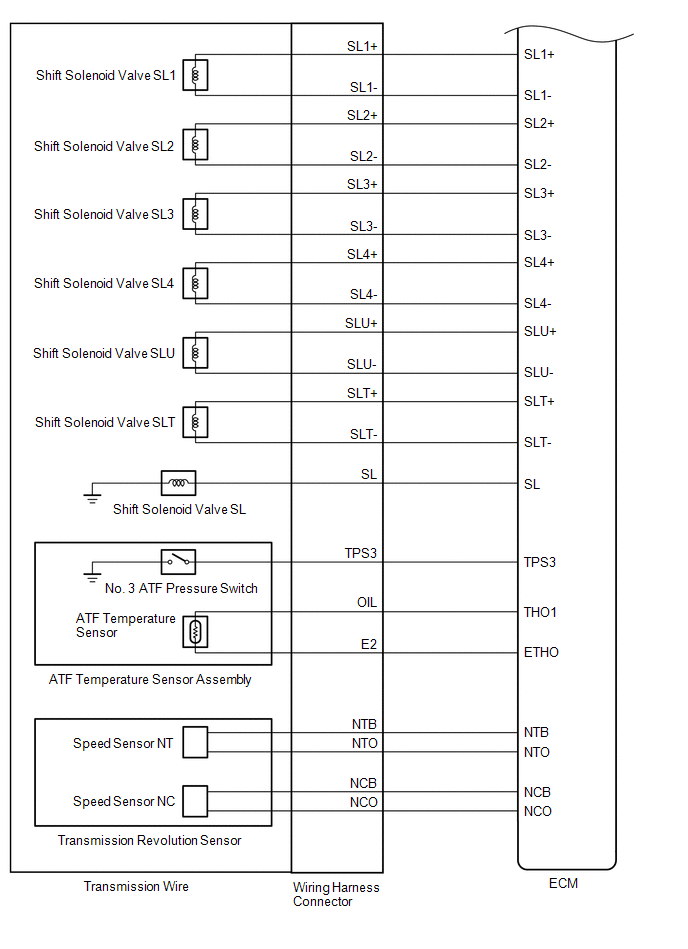

Fig 1: Automatic Transaxle System Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

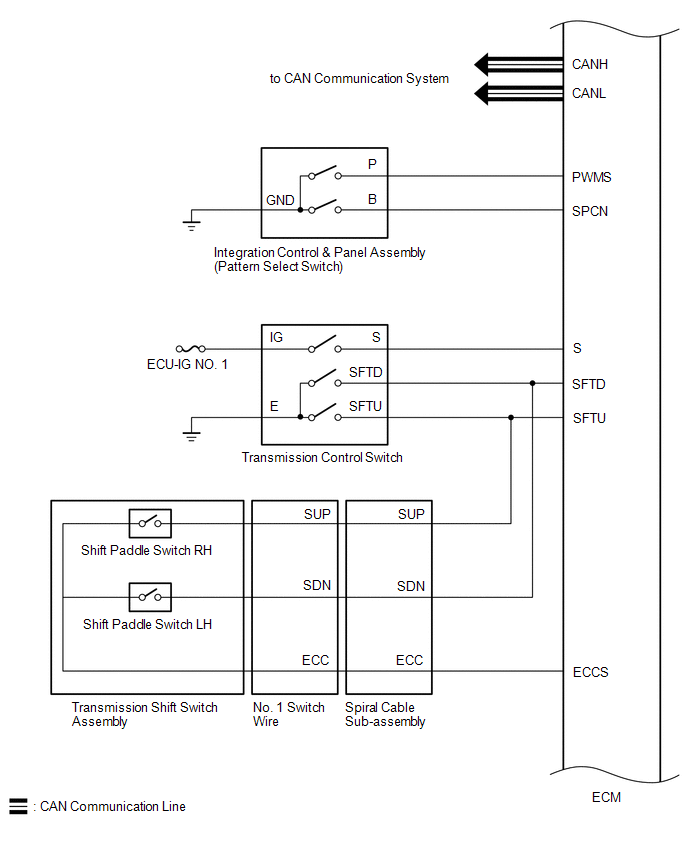

Fig 2: Automatic Transaxle System Wiring Diagram (2 Of 3)

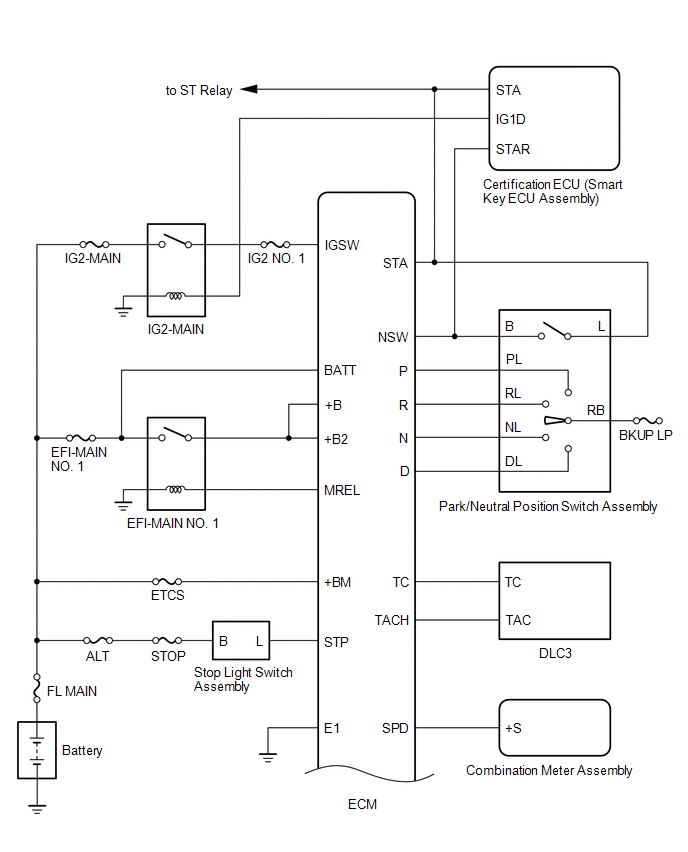

Fig 3: Automatic Transaxle System Wiring Diagram (3 Of 3)
