Removal [10/2014 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17 [10/2014 - 09/2016] , or refer to PROCEDURE - Step 17 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 17 [05/2019 - ]

  2. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

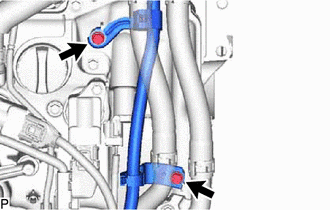

    1. Remove the 2 bolts and disconnect the wire harness from the cylinder head cover sub-assembly.
      GTY506742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

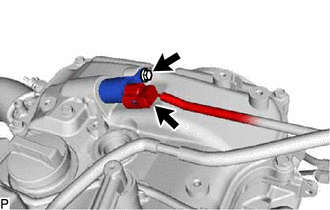

    2. Disconnect the camshaft timing oil control valve assembly connector.
      GTY506703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and camshaft timing oil control valve assembly from the cylinder head cover sub-assembly.
      NOTE:

      Replace with a new part if it is dropped or if it receives a strong impact.

    4. Remove the O-ring from the camshaft timing oil control valve assembly.
      GTY519443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-Ring

      HINT:

      An O-ring is already installed in a new camshaft timing oil control valve assembly. Therefore, the O-ring does not need to be removed when the assembly is replaced with a new one.
