Removal [09/2015 - ]: Procedure

Refer to REMOVAL [09/2015 - ]

Refer to REMOVAL [09/2015 - 09/2017] , or refer to REMOVAL [09/2017 - ]

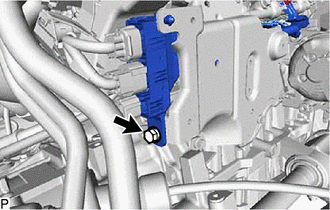

1. Remove the 2 bolts and disconnect the sensor wire from the fuel delivery pipe sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

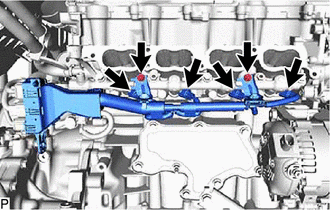

2. Disconnect the 4 connectors from the 4 fuel injector sets.
3. Disconnect the connector from the fuel pressure sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

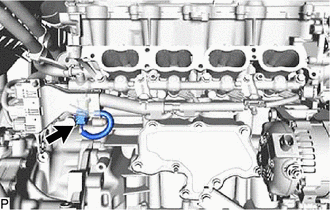

4. Remove the bolt and disconnect the sensor wire.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

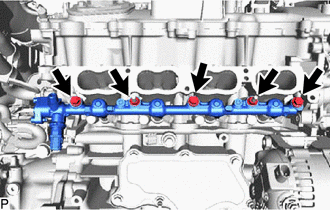

5. Remove the 3 bolts and 2 nuts, and then remove the fuel delivery pipe sub-assembly together with fuel injector set.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Be extremely careful not to touch or strike the tips of the fuel injector sets.
   • Be careful not to drop the fuel injector sets when removing the fuel delivery pipe sub-assembly.

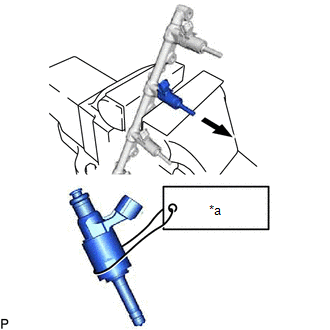

1. Secure the fuel delivery pipe sub-assembly in a vise between aluminum plates and pull out the 4 fuel injector sets.
   NOTE:

   • Pull and remove each fuel injector set in a straight line to avoid damage to the fuel injector seal surface of the fuel delivery pipe sub-assembly O-ring.
   • After removing the fuel injector sets, remove any O-rings, No. 1 fuel injector back-up rings and No. 3 fuel injector back-up rings remaining on the fuel delivery pipe sub-assembly side.
   • For reinstallation, attach a tag or label with the corresponding cylinder number to each fuel injector set.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   No. 2

2. Remove the nozzle holder clamp from each fuel injector set.
3. Using needle nose pliers, remove the No. 3 fuel injector back-up ring from each fuel injector set.
   NOTE:

   Do not damage the part contacting the O-ring.

4. Remove the O-ring and No. 1 fuel injector back-up ring from each fuel injector set.
5. Remove the C-ring and injector vibration insulator from each fuel injector set.

1. Using the tip of needle nose pliers, pinch and pull either of the fuel injector seal at several points to stretch it. Repeat this for the other fuel injector seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Excessively pinching the fuel injector seal may damage the groove of the fuel injector set.
   • If a fuel injector set is dropped or the tip of a fuel injector set is struck, replace it with a new one.
2. Remove the fuel injector seal from the fuel injector set.
