Removal [10/2014 - ]: Procedure

  1. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 1 [10/2014 - 05/2018] , or refer to PROCEDURE - Step 1 [05/2018 - ]

  2. DRAIN COOLANT (for Intercooler)

    See step  1

  3. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY

    Refer to REMOVAL [10/2014 - ]

  4. DISCONNECT NO. 1 TURBO WATER PIPE SUB-ASSEMBLY

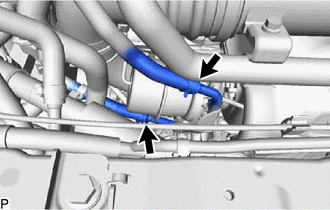

    1. Slide the 2 hose clips and disconnect the No. 1 turbo water hose and No. 2 turbo water hose from the No. 1 turbo water pipe sub-assembly.
      GTY505778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DISCONNECT TURBO OIL INLET PIPE SUB-ASSEMBLY

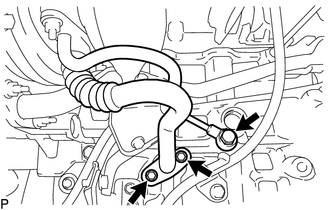

    1. Remove the 2 bolts, union bolt and disconnect the turbo oil inlet pipe sub-assembly.
      GTY510523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the union bolt side gasket.
  6. REMOVE TURBOCHARGER SUB-ASSEMBLY
    1. Disconnect the vacuum transmitting hose assembly from the waste gate valve actuator with bracket assembly.
      GTY510526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

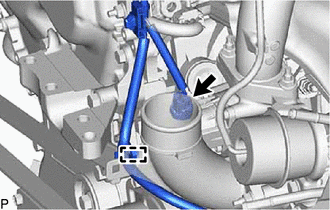

    2. Disconnect the air by-pass valve assembly connector and wire harness clamp from the turbocharger sub-assembly.
      GTY516467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

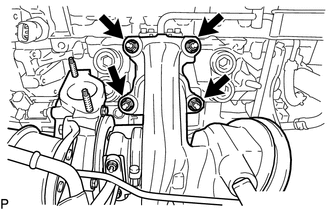

    3. Remove the 4 nuts and turbocharger sub-assembly.
      GTY505734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

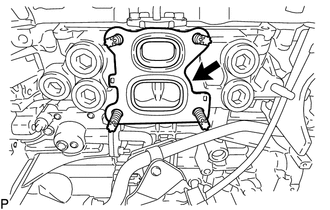

    4. Remove the gasket from the cylinder head sub-assembly.
      GTY505733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the gasket from the turbo oil inlet pipe sub-assembly.
      GTY505861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE COMPRESSOR INLET ELBOW

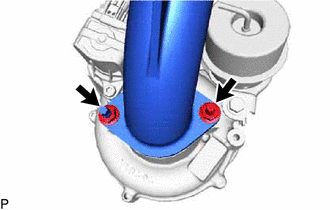

    1. Remove the 2 nuts and compressor inlet elbow.
      GTY519318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket.
  8. REMOVE NO. 1 TURBO WATER PIPE SUB-ASSEMBLY

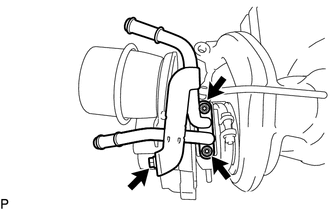

    1. Remove the bolt, 2 nuts and No. 1 turbo water pipe sub-assembly.
      GTY505859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket.
      GTY505860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE TURBO OIL INLET PIPE SUB-ASSEMBLY
    1. Remove the 2 nuts and turbo oil inlet pipe sub-assembly.
      GTY519334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket.
      GTY505858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
