Installation [10/2014 - ]: Procedure

1. Apply MP grease to the lip of a new rear engine oil seal.
   NOTE:

   • Keep the lip free from foreign matter.
   • Do not allow MP grease to contact the dust seal.
2. Using SST, evenly tap in the rear engine oil seal until the seal is flush with the edge of the cylinder block.
   • SST: 09223-1503009950-70010
     1. 09951-07150

   Standard depth

   -0.45 to 0.45 mm (-0.0177 to 0.0177 in.)

   NOTE:

   • Keep the lip of the rear engine oil seal free from foreign matter.
   • Do not tap in the rear engine oil seal at an angle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Depth

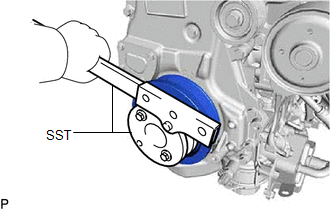

1. Using SST, hold the crankshaft pulley assembly.
   • SST: 09213-5401509330-00021

   HINT:

   Part number of installation bolt for SST (crankshaft pulley holding tool): 91551-80650 (quantity: 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Clean the bolts and their installation holes.
3. Install the front drive plate spacer.

   HINT:

   Align the pin of the front drive plate spacer with the pin hole of the crankshaft.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Pin Hole
   *b	Pin

4. Install the drive plate and ring gear sub-assembly and the rear drive plate spacer to the crankshaft.
   NOTE:

   As the rear drive plate spacer and the drive plate and ring gear sub-assembly are not reversible, be sure to install them so that they are facing in the direction shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Drive Plate and Ring Gear Sub-assembly
   *2	Rear Drive Plate Spacer
   *a	Automatic Transaxle Side

5. Apply a few drops of adhesive to 2 or 3 threads at the end of the 8 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Adhesive

   Adhesive

   Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

6. Install and uniformly tighten the 8 bolts in several steps in the sequence shown in the illustration.

   Torque: 98 N.m (999 kgf/cm, 72 ft.lbf)

   NOTE:

   Do not start the engine for at least an hour after installing the drive plate and ring gear sub-assembly.

   Fig 1: Drive Plate And Ring Gear Sub-Assembly Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

• for 2WD:

  Refer to INSTALLATION [10/2014 - 09/2015] , or refer to INSTALLATION [09/2015 - 05/2019] , or refer to INSTALLATION [05/2019 - ]

• for AWD:

  Refer to INSTALLATION [10/2014 - 09/2015] , or refer to INSTALLATION [09/2015 - 05/2019] , or refer to INSTALLATION [05/2019 - ]

Refer to PROCEDURE - Step 6 [10/2014 - 05/2018] , or refer to PROCEDURE - Step 6 [05/2018 - ]
