Removal [10/2014 - ]: Procedure

  1. DRAIN ENGINE OIL

    See step   [10/2014 - 05/2018] , or see step   [05/2018 - ]

  2. REMOVE COMPRESSOR ASSEMBLY WITH PULLEY

    Refer to REMOVAL [10/2014 - ]

  3. REMOVE NO. 8 ENGINE WIRE

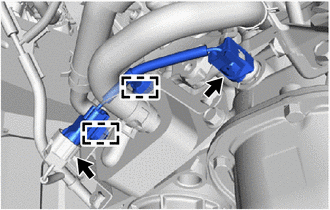

    1. Disconnect the 2 No. 8 engine wire connectors.
      GTY505325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 clamps and remove the No. 8 engine wire from the oil cooler assembly.
  4. REMOVE OIL COOLER ASSEMBLY

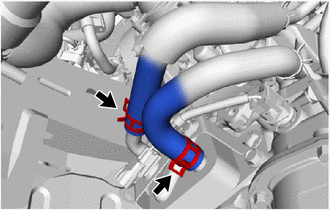

    1. Slide the 2 clamps and disconnect the No. 4 water by-pass hose and No. 5 water by-pass hose from the oil cooler assembly.
      GTY505328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

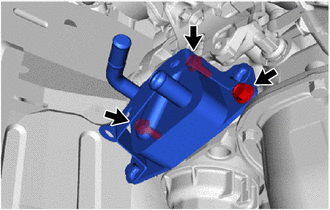

    2. Remove the 3 bolts and oil cooler assembly from the stiffening crankcase assembly.
      GTY505326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the oil cooler gasket from the stiffening crankcase assembly.
    4. Remove the 2 bolts and wire harness clamp bracket from the oil cooler assembly.
      GTY505331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
