Removal [10/2014 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17 [10/2014 - 09/2016] , or refer to PROCEDURE - Step 17 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 17 [05/2019 - ]

  2. REMOVE PCV VALVE SUB-ASSEMBLY
    1. Slide the clamp and disconnect the No. 2 PCV hose from the PCV valve.

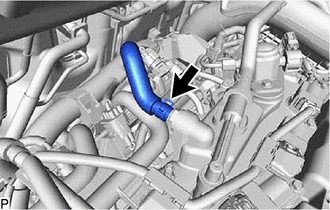

      GTY511263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 22 mm ball joint lock nut wrench, remove the PCV valve sub-assembly from the cylinder head cover sub-assembly.

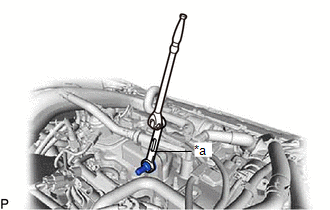

      GTY508662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 22 mm Ball Joint Lock Nut Wrench
