Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT WHEEL

    Refer to REMOVAL [10/2014 - ]

  2. DRAIN BRAKE FLUID
    NOTE:

    Wash off brake fluid immediately if it comes in contact with any painted surface.

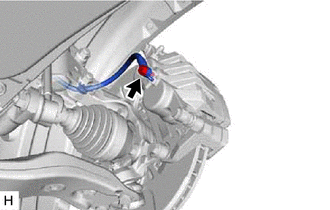

  3. DISCONNECT FRONT FLEXIBLE HOSE
    1. Remove the union bolt and gasket.
      GTY519718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the front flexible hose from the disc brake cylinder assembly LH.

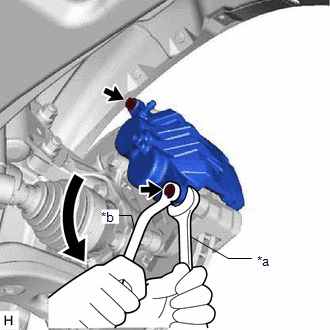

  4. REMOVE DISC BRAKE CYLINDER ASSEMBLY LH
    1. Hold the front disc brake cylinder slide pin and remove the 2 bolts and disc brake cylinder assembly LH.
      GTY506236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      *b Turn
      NOTE:

      Remove the disc brake cylinder assembly while holding both of the brake pads because the anti-squeal springs may fall off the brake pads.

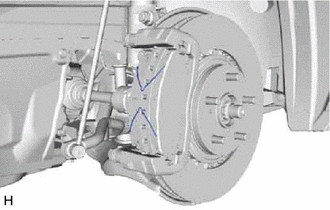

  5. REMOVE FRONT DISC BRAKE PAD
    GTY507603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 anti-squeal springs from the front disc brake pads.
    2. Remove the 2 front disc brake pads from the front disc brake cylinder mounting LH.
  6. REMOVE FRONT ANTI-SQUEAL SHIM KIT
    1. Remove the 2 No. 1 anti-squeal shims from the front disc brake pads.

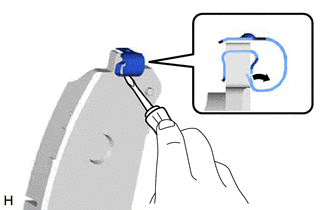

  7. REMOVE NO. 1 PAD WEAR INDICATOR PLATE
    1. Using a screwdriver, remove the No. 1 pad wear indicator plates from the front disc brake pads as shown in the illustration.
      GTY507595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

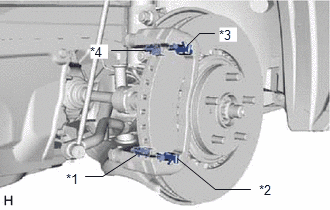

  8. REMOVE FRONT NO. 1 DISC BRAKE PAD SUPPORT PLATE
    1. Remove the 4 front disc brake pad support plates from the front disc brake cylinder mounting LH.
      GTY507490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front No. 1 Disc Brake Pad Support Plate
      *2 Front No. 2 Disc Brake Pad Support Plate
      *3 Front No. 3 Disc Brake Pad Support Plate
      *4 Front No. 4 Disc Brake Pad Support Plate
      NOTE:

      Each front disc brake pad support plate has a different shape. Be sure to put an identification mark on each front disc brake pad support plate so that they can be reinstalled to their original position.

  9. REMOVE FRONT NO. 2 DISC BRAKE PAD SUPPORT PLATE
  10. REMOVE FRONT NO. 3 DISC BRAKE PAD SUPPORT PLATE
  11. REMOVE FRONT NO. 4 DISC BRAKE PAD SUPPORT PLATE

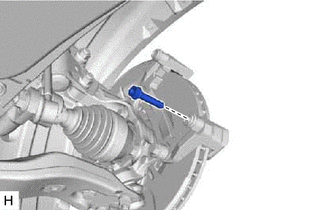

  12. REMOVE NO. 2 DISC BRAKE CYLINDER SLIDE PIN
    1. Remove the No. 2 disc brake cylinder slide pin from the front disc brake cylinder mounting LH.
      GTY507599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

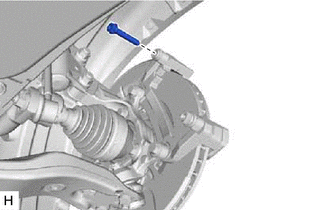

  13. REMOVE FRONT DISC BRAKE CYLINDER SLIDE PIN
    1. Remove the front disc brake cylinder slide pin from the front disc brake cylinder mounting LH.
      GTY507598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FRONT DISC BRAKE CYLINDER SLIDE BUSH
    1. Using a screwdriver with its tip wrapped with protective tape, remove the front disc brake cylinder slide bush from the No. 2 disc brake cylinder slide pin.
      GTY518641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      HINT:

      Tape the screwdriver tip before use.

      NOTE:

      Do not damage the No. 2 disc brake cylinder slide pin.

  15. REMOVE FRONT DISC BRAKE BUSH DUST BOOT
    1. Remove the 2 front disc brake bush dust boots from the front disc brake cylinder mounting LH.
      GTY507594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

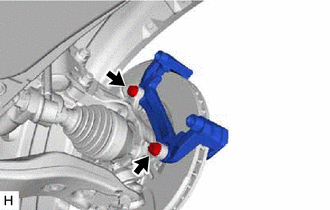

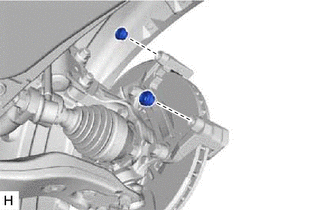

  16. REMOVE FRONT DISC BRAKE CYLINDER MOUNTING LH
    1. Remove the 2 bolts and front disc brake cylinder mounting LH from the steering knuckle.
      GTY507590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

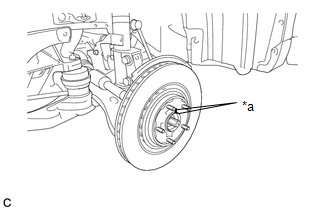

  17. REMOVE FRONT DISC
    1. Put matchmarks on the front disc and axle hub.
      GTY516365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Remove the front disc.
