Removal [09/2017 - ]: Procedure

  1. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 5 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 5 [05/2019 - ]

  2. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 6 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 6 [05/2019 - ]

  3. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

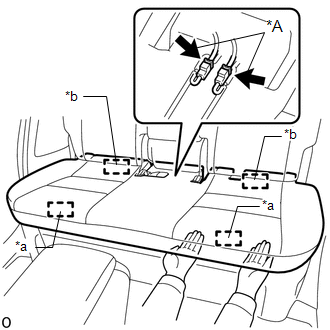

    1. Lift the front end of the rear seat cushion assembly as shown in the illustration and detach the 2 hooks from the rear seat cushion lock hook section.
      GTY828844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Seat Heater System
      *a Rear seat cushion lock hook section
      *b Hook section at rear of rear seat cushion frame
      NOTE:

      The rear seat cushion frame will deform if lifted at a position far from the rear seat cushion lock hook.

    2. Detach the 2 hooks of the rear of the rear seat cushion frame.
    3. Pass the rear seat inner with center belt assembly RH through the rubber band of the rear seat cushion assembly.
    4. w/ Seat Heater System:
      1. Slightly lift up the bench type rear seat cushion assembly and disconnect the 2 connectors under it.
        NOTE:

        Be careful not to damage the connector or wire harness.

    5. Remove the bench type rear seat cushion assembly.
      NOTE:

      Be careful not to damage the vehicle body.

  4. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 22 [09/2017 - 05/2019] , or refer to PROCEDURE - Step 22 [05/2019 - ]

  5. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

  6. REMOVE NO. 3 BATTERY SERVICE COVER BOARD
    1. Remove the 2 clips.
      GTY505036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 clips and guide to remove the No. 3 battery service cover board.
    3. Detach the clamp to disconnect the wire harness.
      GTY505035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the connector.
  7. REMOVE NO. 2 BATTERY SERVICE COVER BOARD

    HINT:

    Use the same procedure described for the No. 3 battery service cover board.

  8. REMOVE REAR POWER SEAT SWITCH

    See step  13

  9. REMOVE REAR SEATBACK ASSEMBLY LH
    1. Operate the rear power seat switch to fold down the rear seatback assembly LH.
    2. Using a clip remover, remove the 4 clips.
      GTY508860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Operate the rear power seat switch to move the rear seatback assembly LH to the upright position.

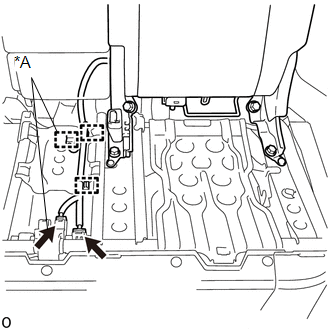

    4. w/o Seat Heater System:
      GTY821276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Seat Heater System
      1. Disconnect the connector and detach the 2 clamps.
    5. w/ Seat Heater System:
      1. Disconnect the 2 connectors and detach the 3 clamps.

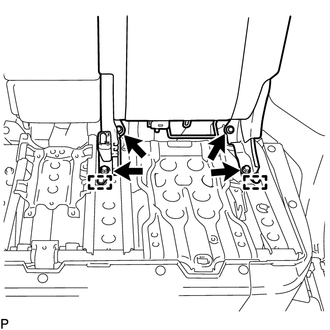

    6. Remove the 4 bolts.
      GTY519996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Detach the 2 guides to remove the rear seatback assembly LH.
      NOTE:

      Be careful not to damage the vehicle body.

  10. REMOVE REAR SEATBACK ASSEMBLY RH
    1. Operate the rear power seat switch to fold down the rear seatback assembly RH.
    2. Using a clip remover, remove the 3 clips.
      GTY508861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Operate the rear power seat switch to move the rear seatback assembly RH to the upright position.

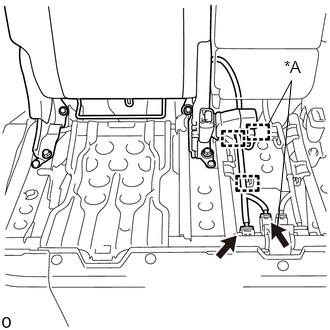

    4. w/o Seat Heater System:
      GTY800013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Seat Heater System
      1. Disconnect the connector and detach the 2 clamps.
    5. w/ Seat Heater System:
      1. Disconnect the 2 connectors and detach the 3 clamps.

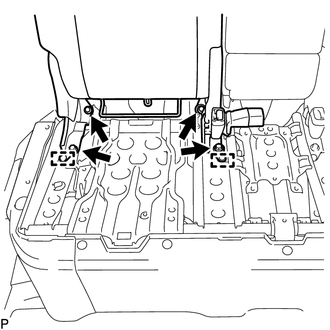

    6. Remove the 4 bolts.
      GTY508852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Detach the 2 guides to remove the rear seatback assembly RH.
      NOTE:

      Be careful not to damage the vehicle body.

  11. REMOVE BATTERY SERVICE COVER BOARD
    1. Remove the 5 clips.
      GTY508991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 guides to remove the battery service cover board.
  12. REMOVE NO. 1 SEAT LEG ASSEMBLY

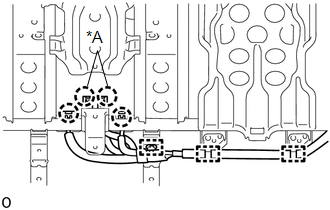

    1. w/o Seat Heater System:
      GTY793163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Seat Heater System
      1. Detach the 2 claws and 3 clamps to disconnect the wire harness.
    2. w/ Seat Heater System:
      1. Detach the 4 claws and 3 clamps to disconnect the wire harness.

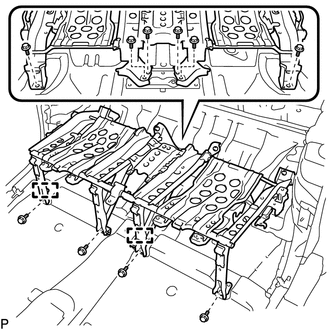

    3. Remove the 10 bolts.
      GTY838066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the 2 guides to remove the No. 1 seat leg assembly.
  13. REMOVE SEAT LEG BRACKET
    1. Partially remove the floor carpet.
    2. Detach the clamp.
      GTY509055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 bolts and seat leg bracket.
