Removal [10/2014 - 09/2017]: Procedure

  1. REMOVE CONSOLE ARMREST ASSEMBLY

    See step  5

  2. REMOVE UPPER REAR CONSOLE PANEL

    See step  6

  3. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH

    See step  7

  4. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH

    See step  8

  5. REMOVE INSTRUMENT SIDE PANEL LH

    See step  9

  6. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    See step  10

  7. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    See step  11

  8. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    See step  12

  9. REMOVE NO. 1 SWITCH HOLE BASE

    See step  13

  10. REMOVE INSTRUMENT SIDE PANEL RH

    See step  14

  11. REMOVE NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    See step  15

  12. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    See step  16

  13. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Hold the shift lever knob sub-assembly and shifting hole cover sub-assembly, and then pull down the shifting hole cover sub-assembly to detach the 2 claws.
      GTY512840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Shifting Hole Cover Sub-assembly

      HINT:

      Do not rotate the shift lever knob sub-assembly. Pull down the shifting hole cover sub-assembly along the knob axis shown in the illustration.

      GTY504570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Knob Axis
      *2 Separation
      *a Downward direction to pull shifting hole cover sub-assembly
    2. Twist the shift lever knob sub-assembly in the direction indicated by the arrow and remove it.
      GTY498802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

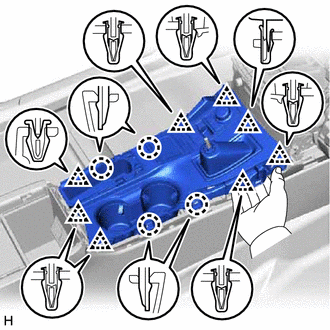

  14. REMOVE UPPER REAR CONSOLE PANEL SUB-ASSEMBLY
    1. Place your hand as shown in the illustration and detach the 4 claws and 8 clips.
      GTY498795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connectors and detach the clamp and remove the upper rear console panel sub-assembly.

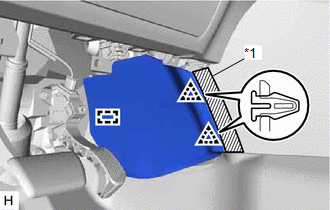

  15. REMOVE INNER NO. 1 INSTRUMENT PANEL BRACE COVER LH
    1. Put protective tape around the inner No. 1 instrument panel brace cover LH.
      GTY508344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Protective Tape
    2. Detach the 2 clips and guide and remove the inner No. 1 instrument panel brace cover LH.

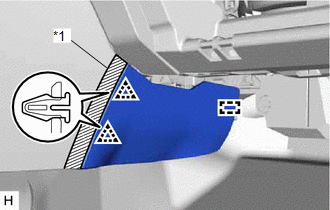

  16. REMOVE INNER NO. 1 INSTRUMENT PANEL BRACE COVER RH
    1. Put protective tape around the inner No. 1 instrument panel brace cover RH.
      GTY504016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Protective Tape
    2. Detach the 2 clips and guide and remove the inner No. 1 instrument panel brace cover RH.

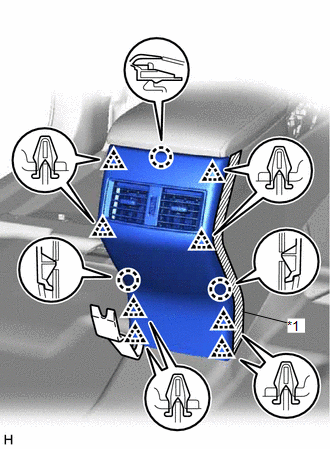

  17. REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY
    1. Put protective tape around the rear console end panel sub-assembly.
      GTY514761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Protective Tape
    2. Using molding remover B, detach the 8 clips and 3 claws.
    3. Disconnect the connectors and remove the rear console end panel sub-assembly.
  18. REMOVE CONSOLE BOX POCKET (w/o Wireless Charger)
    1. Remove the console box pocket.
      GTY508632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE CONSOLE BOX CARPET
    1. Remove the console box carpet.
      GTY508630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

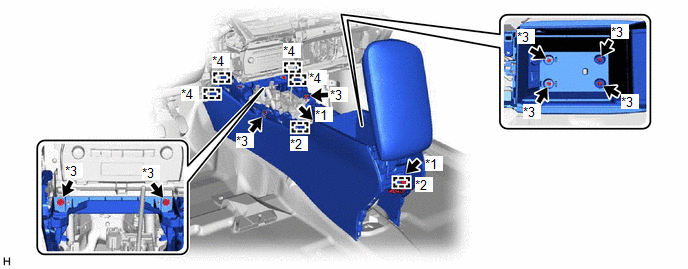

  20. REMOVE CONSOLE BOX ASSEMBLY
    1. Disconnect the connectors and detach the clamps.
    2. Remove the 6 bolts.
    3. Detach the 4 guides and remove the console box assembly.
      GTY503720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Connector *2 Clamp
      *3 Bolt *4 Guide
