Removal [09/2017 - ]: Procedure

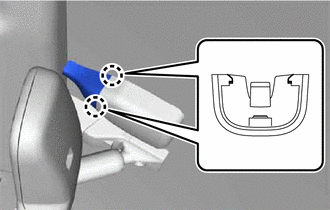

1. Detach the 2 claws and remove the rain sensor cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

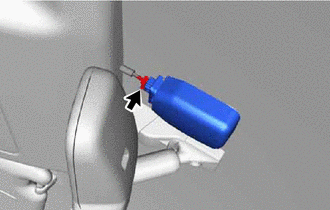

2. Release the stopper by pulling it down.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1

   Stopper

3. Remove the rain sensor as shown in the illustration.

HINT:

• The rain sensor tape is reusable. Only replace the tape if it is damaged or contaminated with foreign matter.
• Check that there is no rain sensor tape residue remaining on the windshield glass. If there is, remove the residue before installing the rain sensor.
• If there is any rain sensor tape residue remaining on the windshield glass, replace the tape.
