Removal [10/2014 - ]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY (PERSONAL LIGHT)

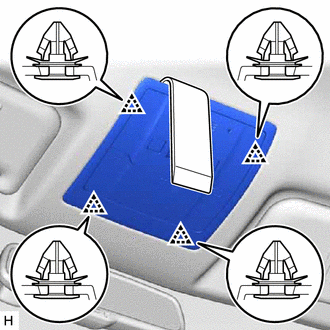

    1. Using molding remover D, detach the 4 clips.
      GTY500301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connectors and remove the map light assembly (personal light).
