Removal [10/2014 - 09/2017]: Procedure

  1. PRECAUTION
    NOTE:

    fter turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceedingwith work.

    Refer to PRECAUTION [10/2014 - 09/2017]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2014 - 09/2017]

  3. REMOVE CONSOLE ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 5

  4. REMOVE UPPER REAR CONSOLE PANEL

    Refer to PROCEDURE - Step 6

  5. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 8

  6. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 7

  7. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 14

  8. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 9

  9. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  10. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  11. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 12

  12. REMOVE NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 13

  13. REMOVE NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15

  14. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 16

  15. REMOVE MULTI-DISPLAY ASSEMBLY WITH BRACKET
    1. Remove the 2 bolts and detach the 2 clips.
      GTY514584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Move the multi-display assembly with bracket in the direction indicated by the arrow shown in the illustration.
      GTY514550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

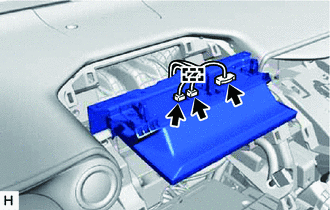

    3. Disconnect each connector.
      GTY514549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the clamp and remove the multi-display assembly with bracket.
  16. REMOVE MULTI-DISPLAY CONTROLLER BRACKET A
    1. Remove the 3 screws.
      GTY502219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and multi-display controller bracket A.
      GTY502220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE MULTI-DISPLAY ASSEMBLY
