Reassembly [09/2017 - ]: Procedure

  1. INSTALL NO. 1 COMBINATION METER MIRROR PLATE

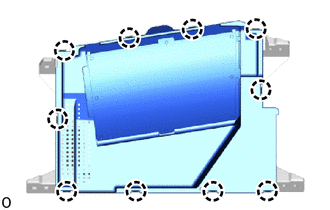

    1. Attach the 10 claws to install the No. 1 combination meter mirror plate to the meter mirror sub-assembly (headup display).
      GTY788192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
