Installation [10/2014 - 09/2017]: Procedure

INSTALL COMBINATION METER MIRROR ECU (HEADUP DISPLAY)

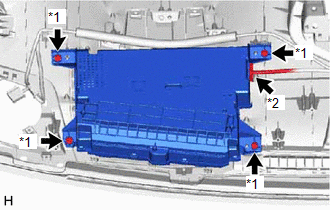

Install the combination meter mirror ECU (headup display) with the 4 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Screw
*2	Connector

INSTALL NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY
1. Install the No. 1 heater to register duct sub-assembly with the 3 screws.
INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY
Refer to INSTALLATION [10/2014 - 09/2017]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [10/2014 - 09/2017]
ENABLE AUTOAWAY/RETURN FUNCTION
1. Restore the autoaway/return function setting to the previous condition by changing the customize parameter.
  Refer to CUSTOMIZE PARAMETERS [10/2014 - ]
CHECK SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM [10/2014 - ]
