Meter / Gauge / Display - Service Information
>>
HEADUP Display
>>
Components [10/2014 - 09/2017]
Components [10/2014 - 09/2017]

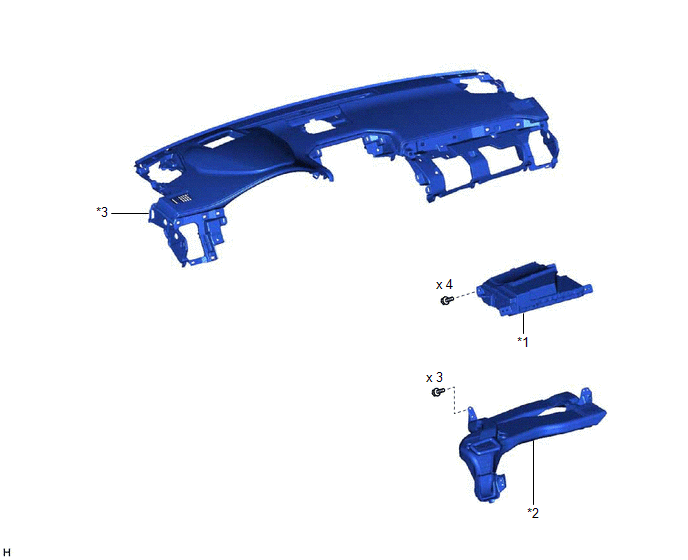

Fig 1: Headup Display Replacement Components [10/2014 - 09/2017]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
COMBINATION METER MIRROR ECU (HEADUP DISPLAY)
*2
NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY
*3
UPPER INSTRUMENT PANEL SUB-ASSEMBLY
-
-
