Removal [10/2014 - 09/2017]: Procedure

  1. DISABLE AUTOAWAY/RETURN FUNCTION
    1. Disable the autoaway/return function by changing the customize parameter.

      Refer to CUSTOMIZE PARAMETERS [10/2014 - ]

      WARNING:

      Record the current customize parameter setting (whether the autoaway/return function is enabled or disabled) in order to restore the current setting after finishing the operation.

      HINT:

      Performing the above operation causes the autoaway/return function to be disabled when the engine switch is turned off.

    2. Turn the engine switch on (IG). Operate the tilt and telescopic switch to fully extend and lower the steering column assembly.
    3. Turn the engine switch off.
  2. REMOVE CONSOLE ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 5

  3. REMOVE UPPER REAR CONSOLE PANEL

    Refer to PROCEDURE - Step 6

  4. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 7

  5. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 8

  6. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 9

  7. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  8. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  9. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 12

  10. REMOVE NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 13

  11. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 14

  12. REMOVE NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15

  13. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 16

  14. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  15. REMOVE COMBINATION METER ASSEMBLY

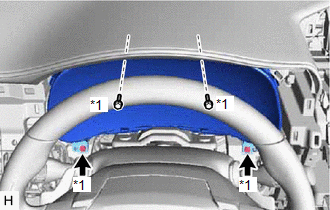

    1. Remove the 4 screws.
      GTY497330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Screw
    2. Disconnect the connectors, detach the clamp and remove the combination meter assembly.
