Reassembly [10/2014 - ]: Procedure

  1. INSTALL COMBINATION METER GLASS

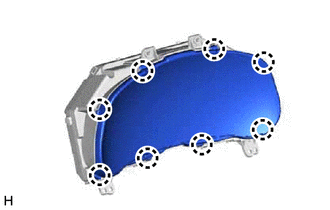

    1. Attach the 8 claws to install the combination meter glass.
      GTY495563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
