Disassembly [10/2014 - ]: Procedure

  1. REMOVE COMBINATION METER GLASS

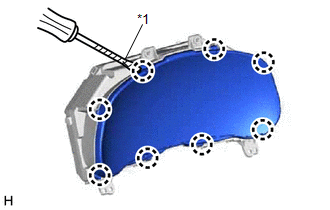

    1. Using a screwdriver, detach the 8 claws and remove the combination meter glass.

      HINT:

      Tape the screwdriver tip before use.

      GTY506710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Protective Tape
