Components [10/2014 - 09/2017]

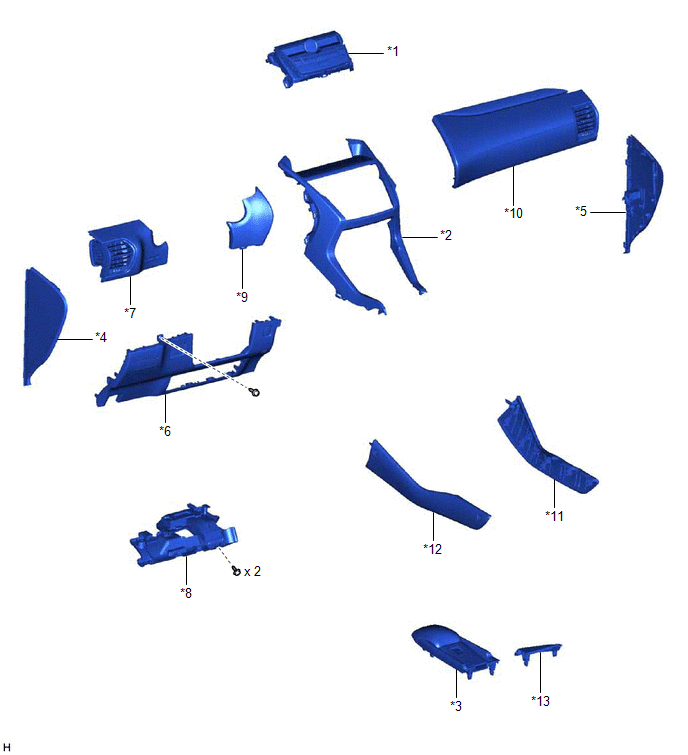

Fig 1: Clock Replacement Components [10/2014 - 09/2017] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIR CONDITIONING CONTROL ASSEMBLY	*2	CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
*3	CONSOLE ARMREST ASSEMBLY	*4	INSTRUMENT SIDE PANEL LH
*5	INSTRUMENT SIDE PANEL RH	*6	LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
*7	NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY	*8	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
*9	NO. 1 SWITCH HOLE BASE	*10	NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
*11	UPPER NO. 1 CONSOLE PANEL GARNISH	*12	UPPER NO. 2 CONSOLE PANEL GARNISH
*13	UPPER REAR CONSOLE PANEL	-	-

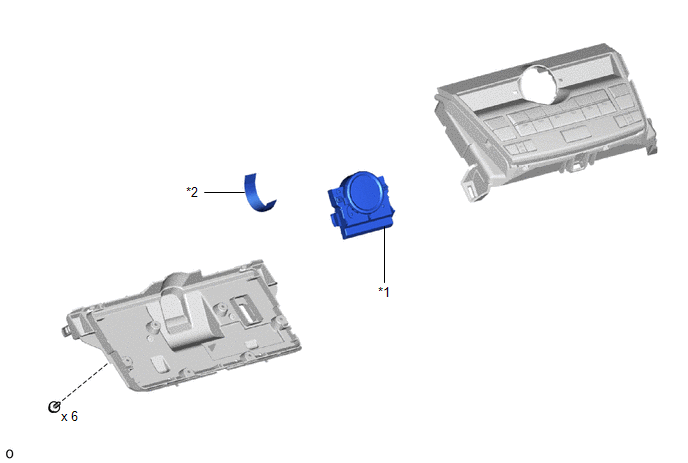

Fig 2: Clock Replacement Components [10/2014 - 09/2017] (2 Of 2)

CLOCK ASSEMBLY

HEATER CONTROL CABLE SUB-ASSEMBLY
