Adjustment [10/2014 - 09/2017]: Procedure
- ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*a Approx. 10 m (32.8 ft.) *b Approx. 14 m (45.9 ft.) WARNING:Radio frequency radiation exposure information:
- This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
- This equipment should be kept with minimum distance of 20 cm (7.87 in.) between the radiator (antenna) and your body at all times during adjustment.
- This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
NOTE:- Perform measurements on a level surface.
- Make sure that no large metal objects are within a 10 m (32.8 ft.) x 14 m (45.9 ft.) area in front of the vehicle. If possible, the surrounding area should also be free of large metal objects.
- Before adjusting the radar beam axis, prepare the vehicle as follows.
- Remove all excess weight from the vehicle (luggage, heavy objects, etc.).
- Check the tire pressure and adjust it if necessary.
- Measure the vehicle height.
Refer to PROCEDURE - Step 2
- Remove the radiator support opening cover.
Refer to PROCEDURE - Step 1
- Check and adjust the vertical direction of the millimeter wave radar sensor assembly.
*a Level - Remove dust, oil and foreign matter from the radar sensor level rack.
- Set a level on the radar sensor level rack.
- Check that the level's air bubble is within the red frame.

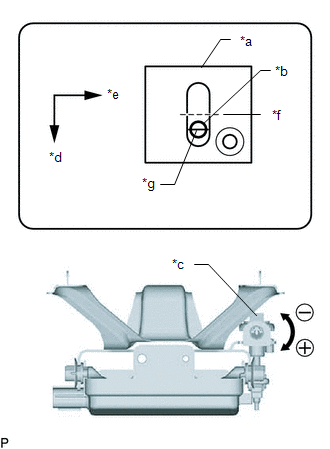

*a Level *b Air Bubble *c Bolt *d Vehicle Front *e Vehicle Left *f 0° *g Red Frame OK
Level's air bubble is within red frame.
If the bubble is not within the red frame, use a screwdriver to adjust the bolt until the air bubble is within the red frame.
HINT:
- The adjustable range within the level's red frame is +/- 0.2°.
- The target angle is +0.2° (upward angle of 0.2°).
Result
Adjustment Direction Adjustment Procedure Adjustment Angle Upward Turn screwdriver to positive (+) side When screwdriver is turned once, adjustment changes by about 0.12° Downward Turn screwdriver to negative (-) side
- Adjust the reflector height.

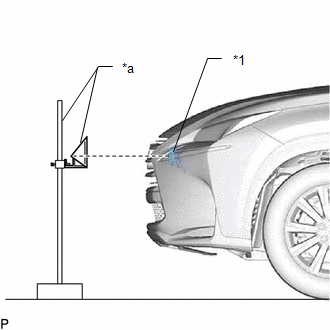

*1 Millimeter Wave Radar Sensor Assembly *a SST(Reflector) - Adjust the reflector so that the center of SST (reflector) is the same height as the millimeter wave radar sensor assembly.
- SST: 09870-60000
- 09870-60010
- SST: 09870-60040
HINT:
Prepare a 10 m (32.8 ft.) string, a string with a sharp-pointed weight (plumb bob) and a 5 m (16.4 ft.) tape measure.
- SST: 09870-60000
- Adjust the reflector so that the center of SST (reflector) is the same height as the millimeter wave radar sensor assembly.
- Place the reflector.

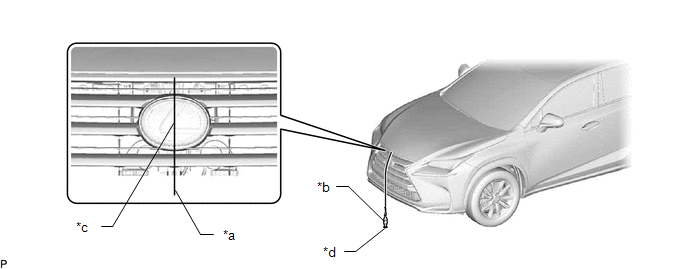

- From the center of the front bumper (center of the emblem), hang a weight with a pointed tip, and mark point B on the ground.

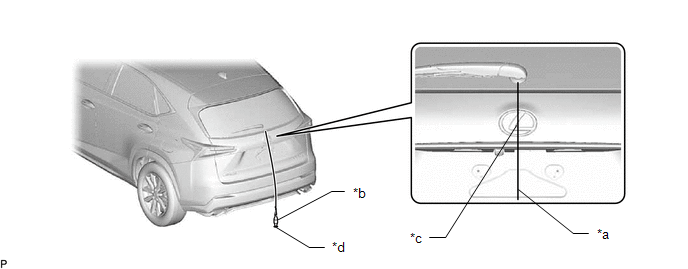

*a String *b Weight *c Center point *d Point B - From the center of the rear bumper (center of the emblem), hang a weight with a pointed tip, and mark point A on the ground.
*a String *b Weight *c Center point *d Point A - Using a piece of string that uses point A as a starting point and that passes through point B, make a straight line on the ground ahead of the vehicle 5 m (16.4 ft.) or more from point B.
HINT:
- Make sure to secure the string (using tape, etc.) when it is taut.
- Lightly flick the string with your fingers several times to confirm that the string is aligned with point B.
- Using a tape measure, measure a position 11 mm (0.433 in.) to the left of the 5000 mm (16.4 ft.) from the millimeter wave radar sensor. Place the reflector at that position.NOTE:
Perform the operation as accurately as possible.

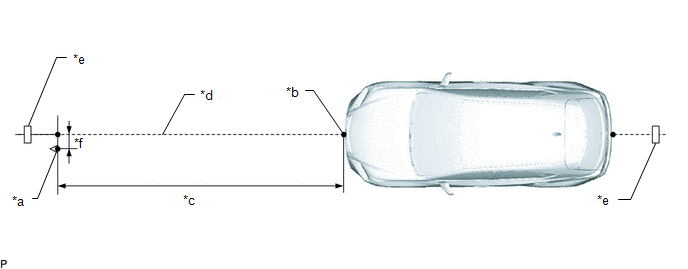

*a Reflector Placement Point *b Millimeter Wave Radar Sensor Position *c 5000 mm (16.4 ft.) *d String *e Tape *f 11 mm (0.433 in.)
- From the center of the front bumper (center of the emblem), hang a weight with a pointed tip, and mark point B on the ground.
- Check the radar beam axis.
- When using the Techstream:
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Turn the Techstream on and turn the cruise control main switch on.
- Select "Connect to Vehicle".
- Select each item on the display screen and proceed to the next screen.
- Under "System Selection Menu", select "Radar Cruise".
- Select "Utility" from the display screen.
- Select "Beam Axis Adjustment" and proceed to the next screen.
- Follow the Techstream display and continue with the adjustment.NOTE:
- Confirm that optical axis distance is approximately 5 m (16.4 ft.).
- If "Error beam axis" is displayed on the screen, press the "Yes" button, and repeat again.
- Check that there are no metal objects in the specified area in front of the vehicle (refer to the NOTICE at the beginning of this adjustment procedure).
Powertrain > Radar Cruise > Utility
Tester Display Beam Axis Adjustment - Press the "Exit" button to finish beam axis adjustment.
- Disconnect the Techstream from the DLC3.
- When using the Techstream:
- After adjusting the radar beam axis, return the vehicle to its original condition.
- Install the radiator support opening cover.
Refer to PROCEDURE - Step 14
- If any heavy items were removed from the vehicle, return them (luggage, heavy objects, etc.).
- Install the radiator support opening cover.
