Adjustment [10/2017 - ]: Procedure

INSPECT FITTING OF LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY

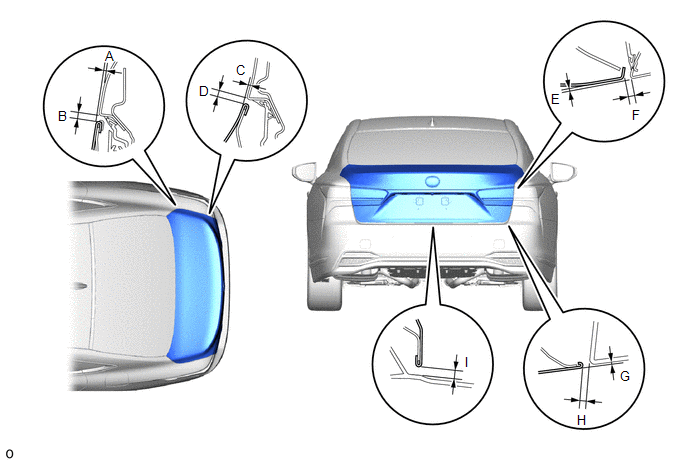

Check that the clearance measurements of areas A to I are within the standard ranges.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard

Area	Measurement	Area	Measurement
A	-1.5 to 1.5 mm (-0.059 to 0.059 in.)	B	2.7 to 5.7 mm (0.106 to 0.224 in.)
C	-1.5 to 1.5 mm (-0.059 to 0.059 in.)	D	2.2 to 5.2 mm (0.087 to 0.205 in.)
E	-1.4 to 1.6 mm (-0.055 to 0.063 in.)	F	2.9 to 5.9 mm (0.114 to 0.232 in.)
G	-1.9 to 2.1 mm (-0.075 to 0.083 in.)	H	2.5 to 6.5 mm (0.098 to 0.256 in.)
I	4.0 to 8.0 mm (0.157 to 0.315 in.)	-	-

ADJUST LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY

Remove the luggage compartment door hinge cover LH.
See step 32 [10/2017 - 10/2020], or see step 35 [10/2020 - 11/2021], or see step 35 [11/2021 - 10/2022], or see step 35 [10/2022 - 10/2023], or see step 35 [10/2023 - ]

HINT:

Use the same procedure for the RH and LH sides.

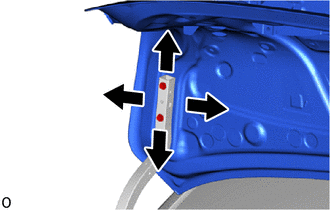

Loosen the 4 hinge bolts on the body and adjust the door position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tighten the 4 hinge bolts on the body after the adjustment.
Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

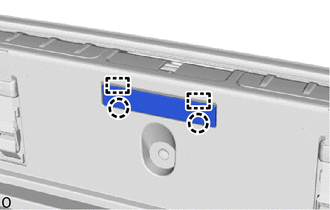

Detach the claw and guide and remove the rear luggage room cover.

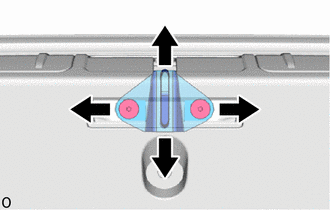

Using a T40 "TORX" socket, adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a plastic hammer.

Using a T40 "TORX" socket, tighten the striker mounting screws after the adjustment.
Torque: 23 N.m (235 kgf/cm, 17 ft.lbf)
Attach the claw and guide to install the rear luggage room cover.
