Disassembly [10/2017 - ]: Procedure

  1. REMOVE HOOD INSULATOR

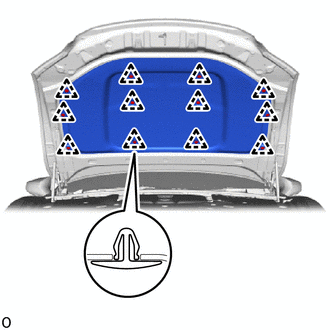

    1. Remove the 12 hood insulator clips.
      GTY832687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the hood insulator.
  2. REMOVE HOOD TO RADIATOR SUPPORT SEAL

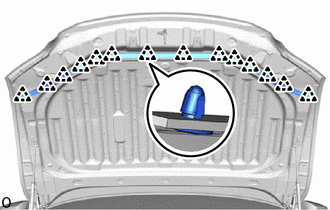

    1. Using a clip remover, detach the 14 hood to cowl top seal clips and remove the hood to radiator support seal.
      GTY799905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE HOOD HINGE COVER LH

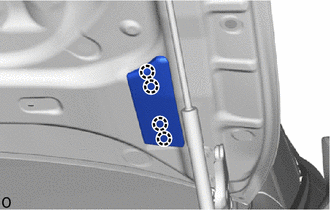

    1. Detach the claw and remove the hood hinge cover LH.
      GTY799908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE HOOD HINGE COVER RH

    HINT:

    Use the same procedure for the RH and LH sides.
