Components [10/2017 - 10/2020]

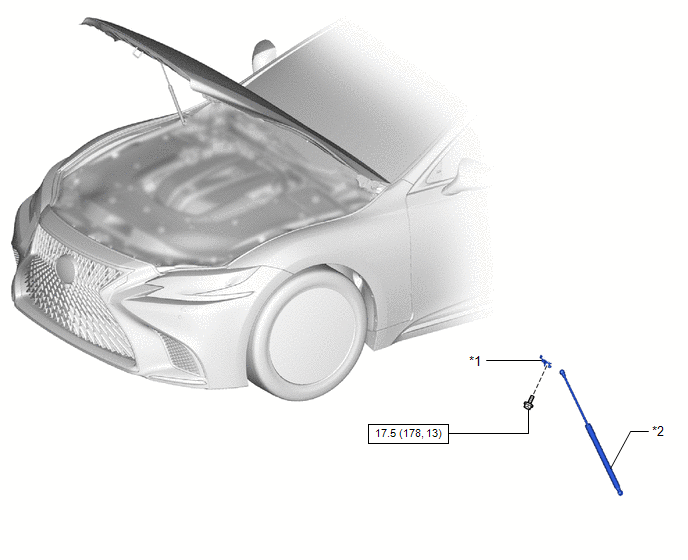

Fig 1: Hood Support Replacement Components With Torque Specifications [10/2017 - 10/2020]
GTY830796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 HOOD STAY BRACKET LH *2 HOOD SUPPORT ASSEMBLY LH
N.m (kgf/cm, ft.lbf): Specified torque - -
